Cermex E458, E460 & E478

TOP 3 BENEFITS:

  • Gantry case packing solution to suit your speed/budge requirements
  • Smooth controlled movements for optimum product loading
  • Robust structure and optimized access conditions

PRODUCT INFORMATION

Sidel’s Pick & Place packers provide controlled and accurate product gripping and loading, ensuring the quality of your products and labels. With their robust mechanical design, they offer operators optimized access to parts, for enhanced hygiene and simple maintenance.

All types of product infeed are possible, for RSC case-packing with or without partitions. Our Pick & Place packers guarantee quick and easy size changeovers. They can be set to a standalone configuration or one associated with forming and gluing modules in order to obtain a combined forming/loading/gluing unit (depending on your layout constraints).

They have wide payload capacities depending on bottle sizes, and can reach speeds of up to:

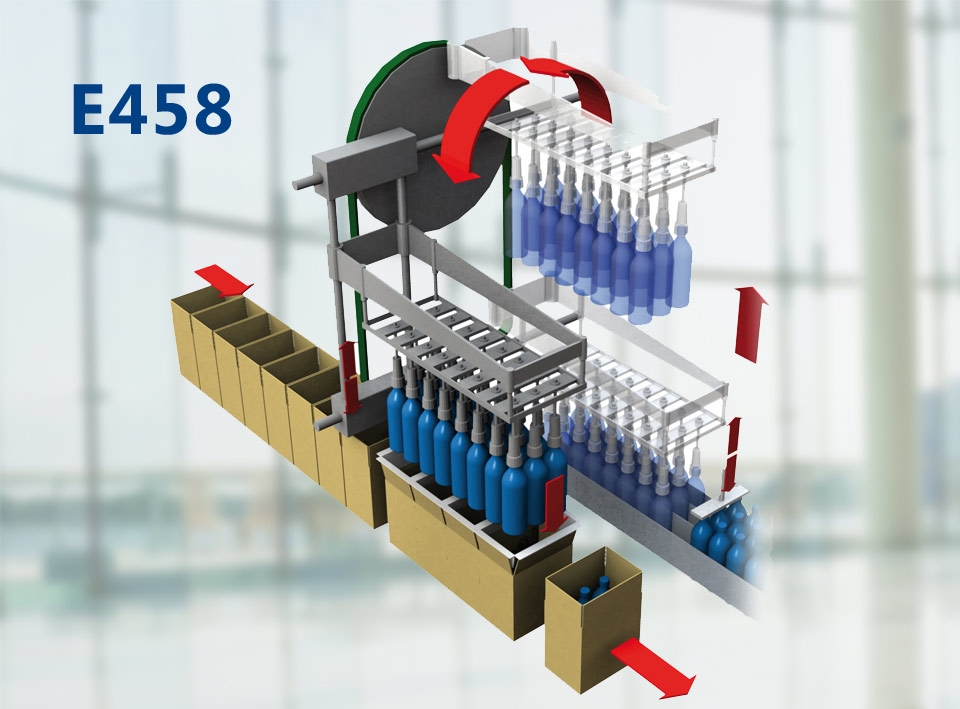

  • E458: 24,000 bottles/hour for sequential case packer

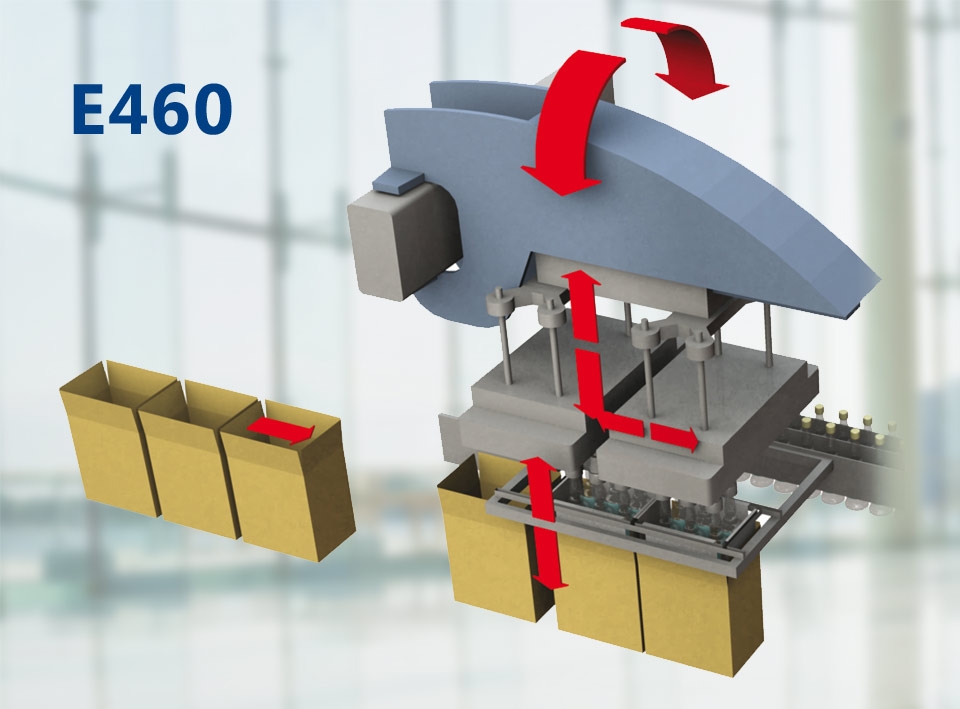

  • E460: 14,000 bottles/hour for sequential case packer

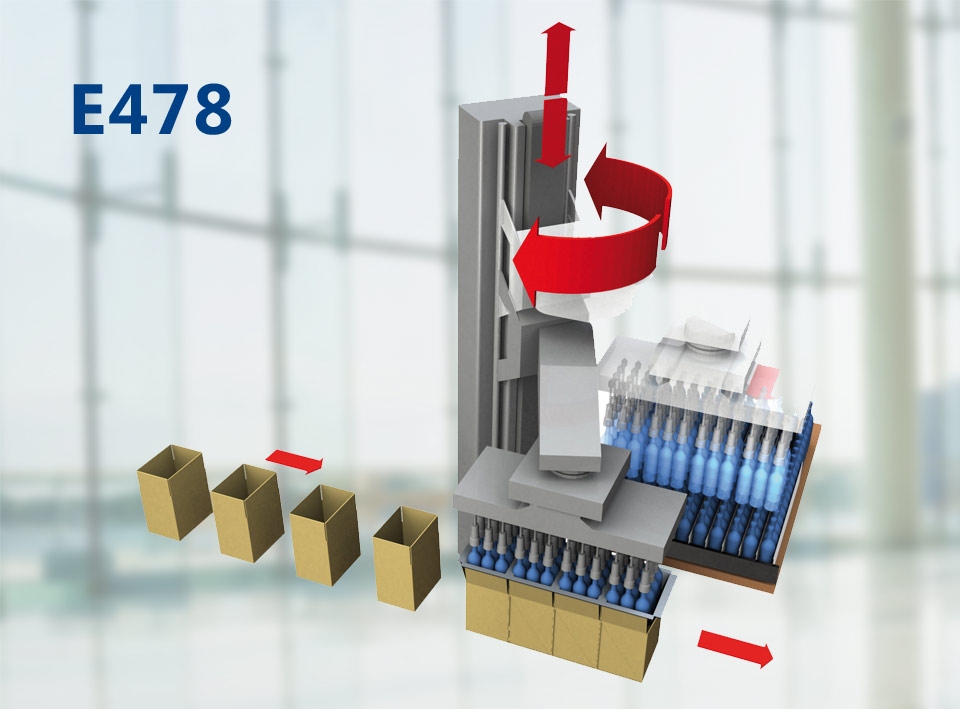

  • E478: 44,000 bottles/hour for sequential case packer

Features

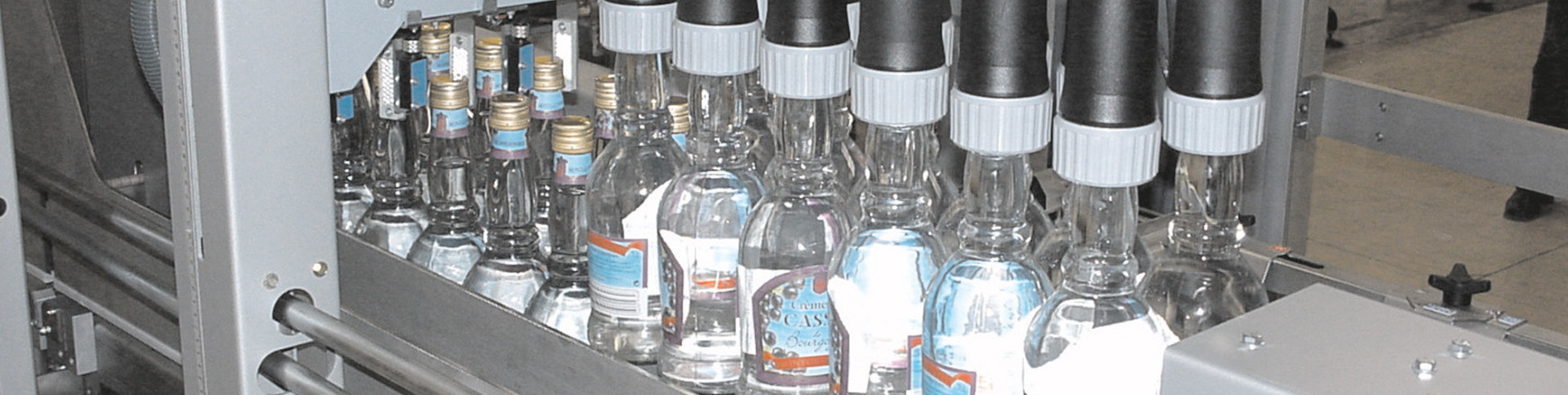

  • Customised gripping tooling designed to protect your bottles and labels.
  • Adjustable loading funnel adapted to your specific case design (including cases with dividers).
  • Central control system in order to manage the acceleration ramps.

  • Transfer of empty cases in accumulation on a motorized conveyor.
  • Selection and isolation of a batch of empty cases at the loading station by retractable stops.
  • Flap deflection and guiding of the batch of products by descent of a loading funnel.

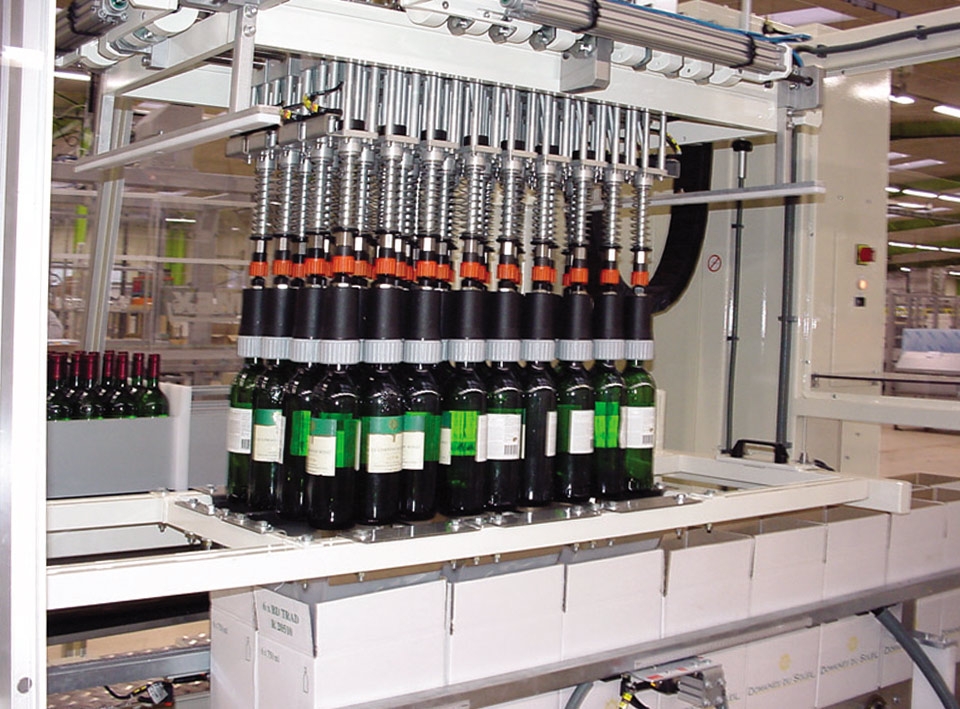

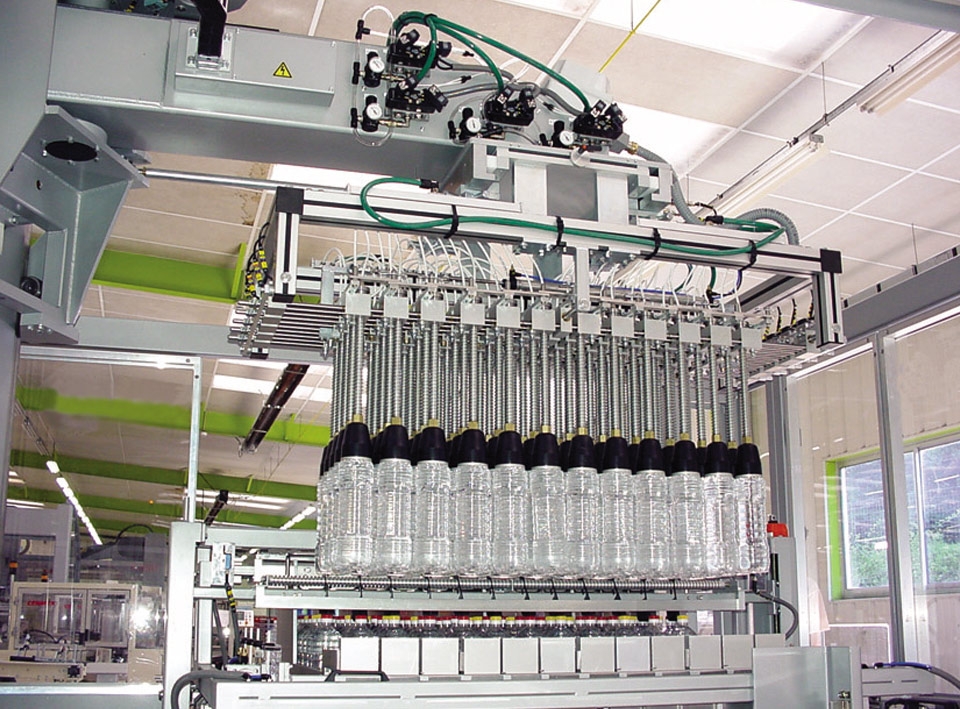

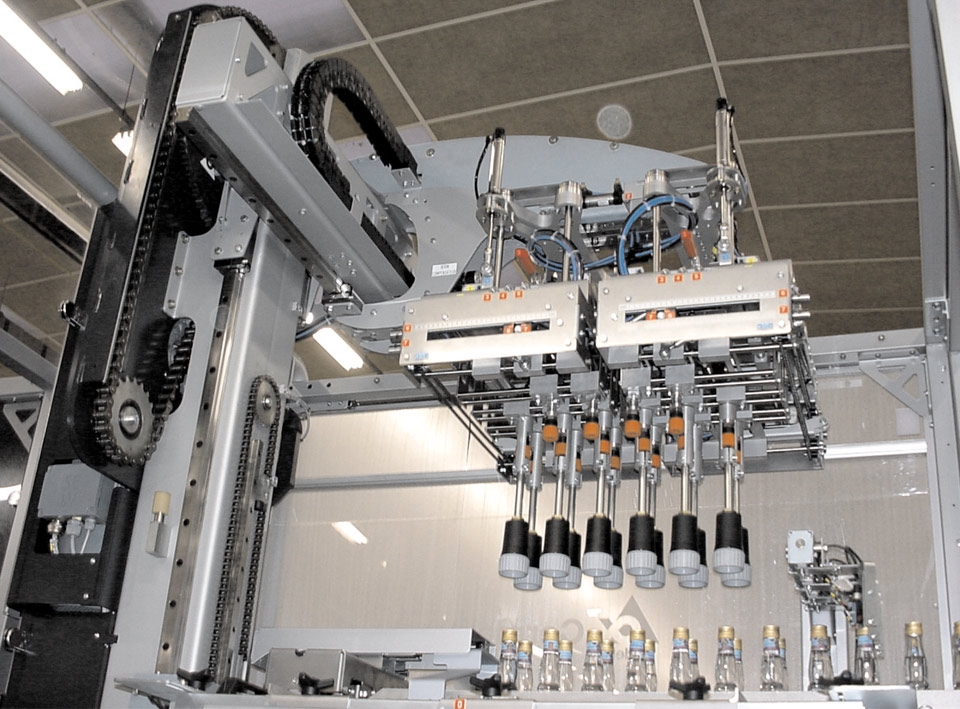

  • Picking and placing of the batch by a gripping head installed on a horizontal beam fixed to a vertical mast.
  • Change parts composed of:
    • A gripping head with flexible membranes
    • A loading funnel
    • A batch release stop
  • Outfeed and spacing out of loaded cases.
