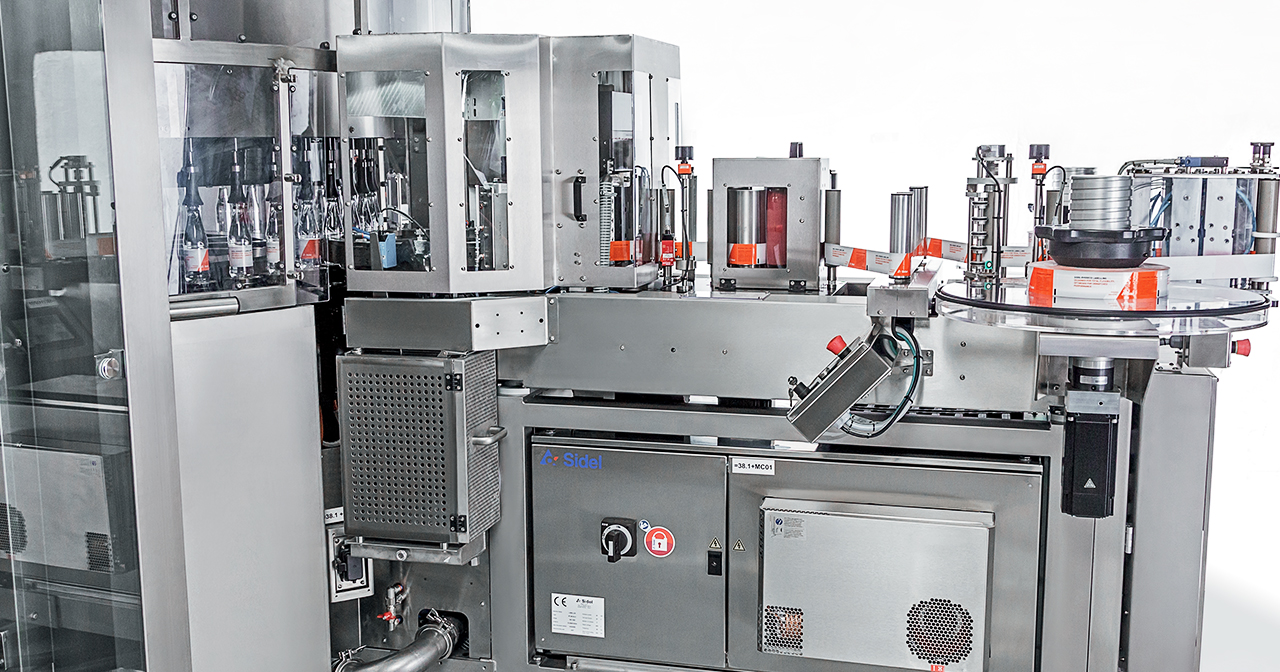

EvoDECO Roll-Fed: Roll-fed Bottle Labeling Machine

EvoDECO Roll-Fed

Boasting four carousel sizes, up to three labelling stations and 24 configurations, the Roll-Fed can generate outputs of up to 72,000 containers per hour, when standalone, at an efficiency rate of 98%.

It achieves outputs of up to 81,000 if integrated with Super Combi. Using hot glue to apply wrap-around plastic labels and a fully brushless motorisation, it can handle lightweight containers and ultra-thin labels, yet allowing for better glue control and distribution, together with reduced consumption.

Find the labeller model to fit your bottles production

Max Speed (bph)	Number of different modules	Bottle diameter (mm)		Carousel diameter (mm)	Heads	Pitch (mm)
Max Speed (bph)	Number of different modules	Min	Max	Carousel diameter (mm)	Heads	Pitch (mm)
42,000	1	45	128	720	16	141
54,000	1	45	100	720	20	113
60,000	2	45	110	1080	27	125
72,000	2	45	100	1440	40	113
81,000*	3	45	81	1800	60	94

*available for Super Combi configuration

Label specifications

Label length (mm)	Label height (mm)	Label materials	Label thickness
Min	Max	Min	Max
156	417	30	170	OPP white OPP transp. Paper	20 - 50 µm

Label length (mm)

Label height (mm)

Label materials

Label thickness

Min

Max

Min

Max

156

417

170

OPP white

OPP transp.

Paper

20 - 50 µm

Features

The EvoDECO Roll-Fed labeller can generate outputs of up to 72,000 bph at an efficiency rate of 98%:

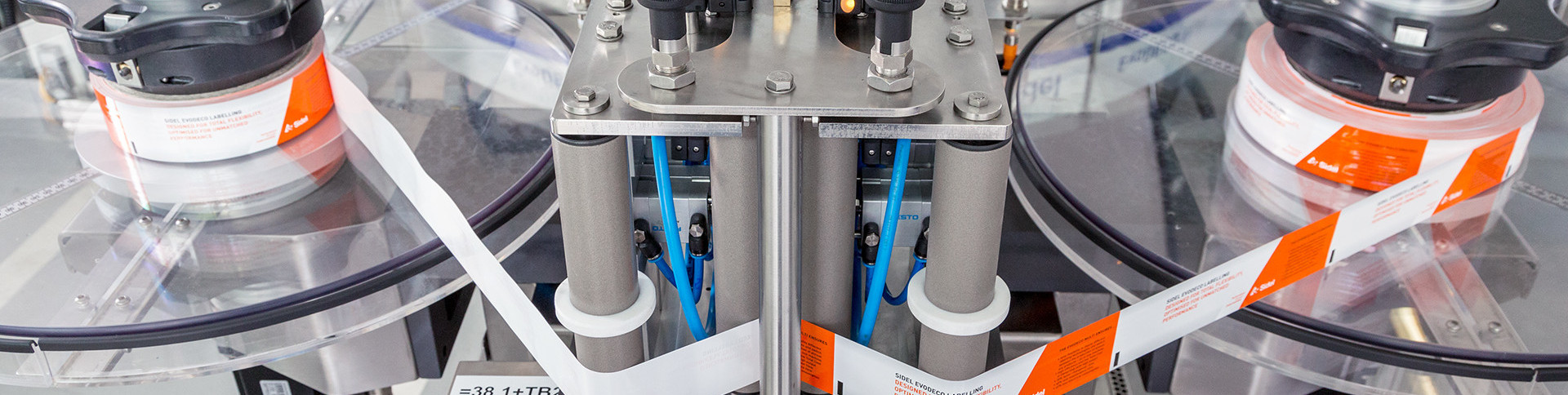

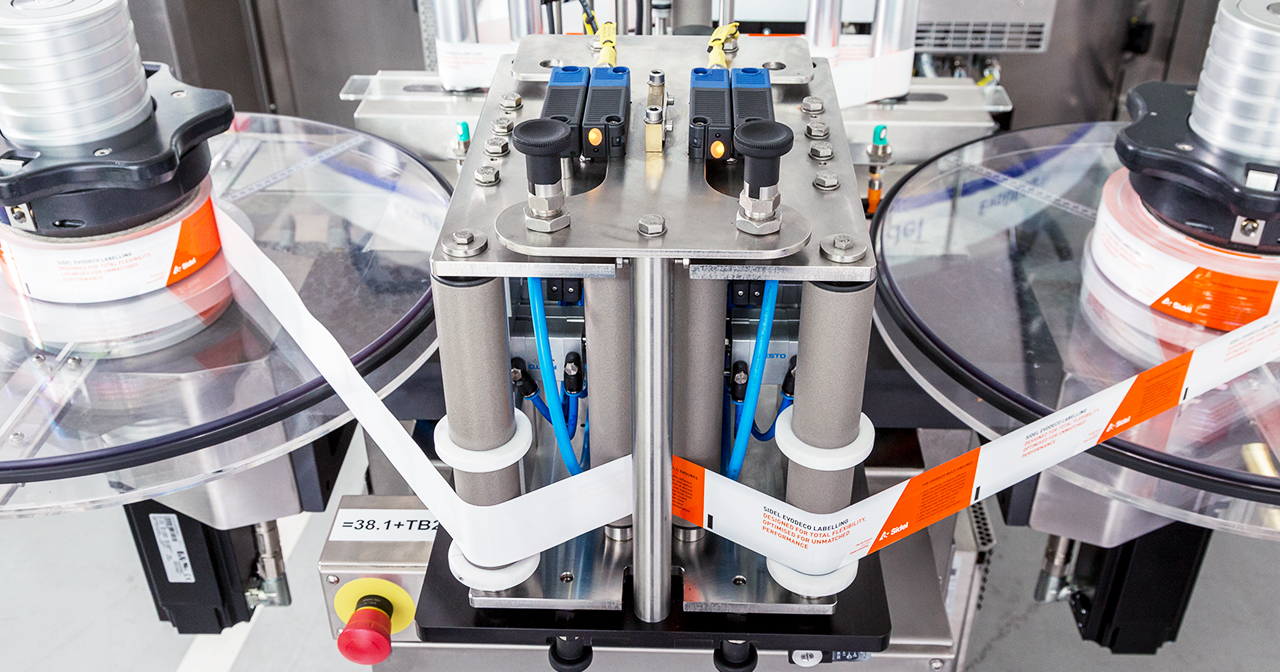

The reels auto-splicing system can be activated at very high speeds of up to 30,000 containers per hour, resulting in improved productivity
The ergonomics of the solution have been significantly optimised, as reflected by the linear design of the roll-fed station
All main components fully visible and accessible during production and maintenance

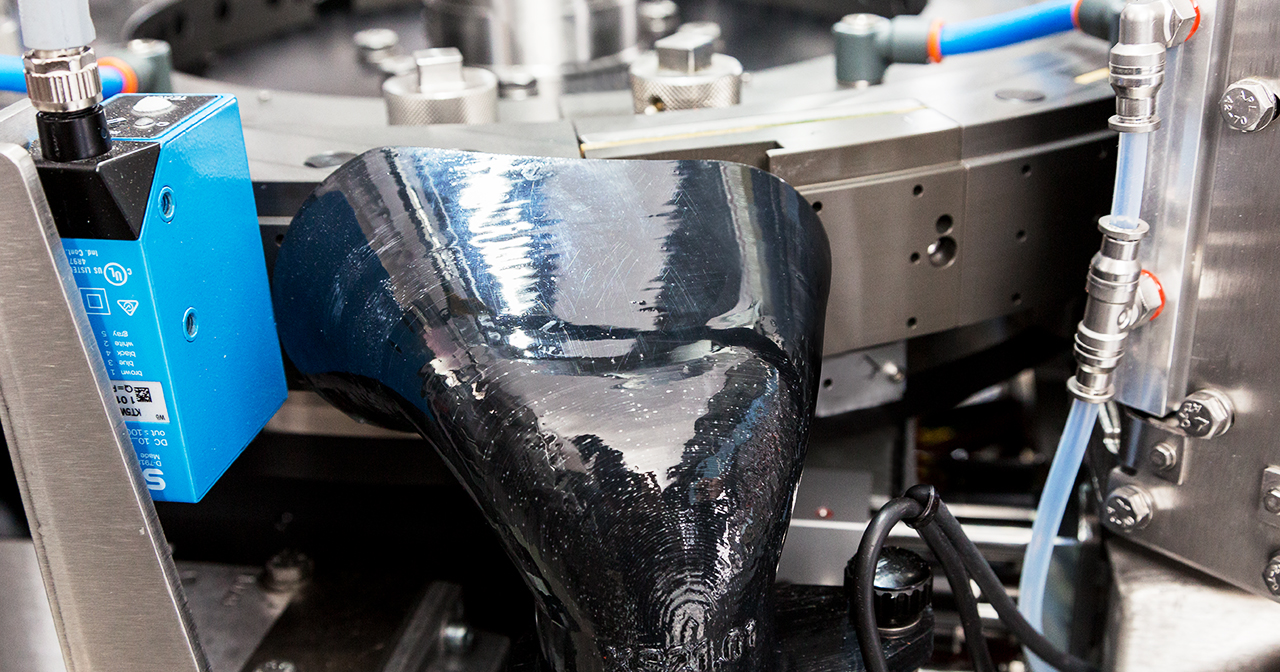

Cleaning can be carried out automatically during production by a system installed on the vacuum drum, which removes any glue residual for higher performance

While developing the EvoDECO Roll-Fed labeller, ease of operations has been high on the Sidel engineers’ agenda, as this is instrumental in securing maximum flexibility and performance:

The solution can be controlled and adjusted via a human-machine interface (HMI) which is integrated within the labelling station
An automatic label extraction system, protected by Sidel patent, ensures no downtime occurs due to labels being not properly applied on the bottle or no bottles being present, for a smooth and consistent flow of production

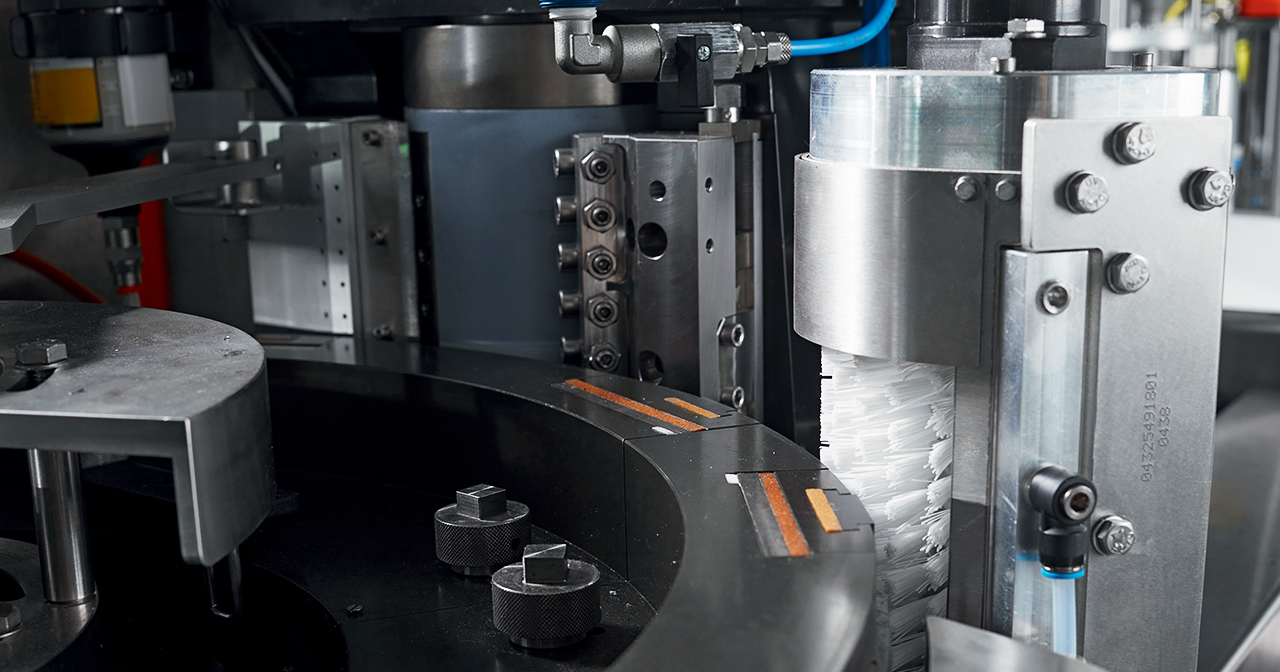

Label application is carried out with a pad-to-pad transfer which ensures a very stable and accurate process, even at high speeds

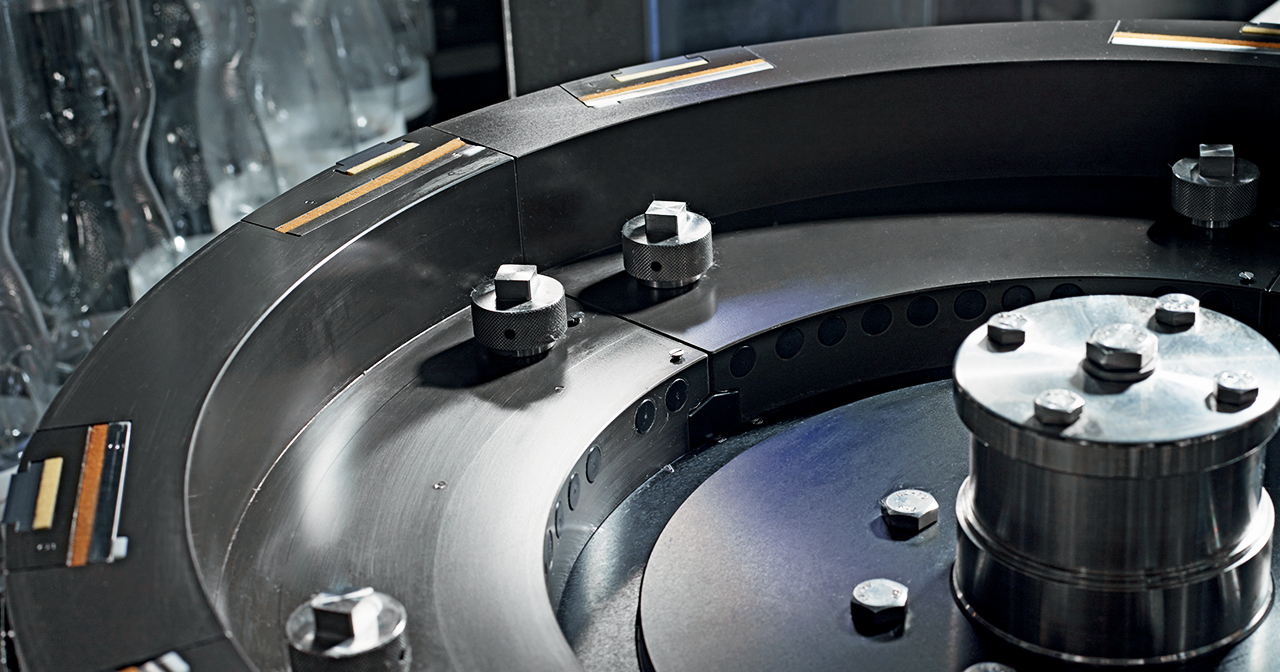

The vacuum drum is built in light-weight sectors for easy and quick replacement and reduced maintenance time

With an integrated glue tank, patented vertical melter and heating control, glue is melted on demand and circulated always at a precise temperature and in smaller quantities:

Reduced consumption of glue
No glue degradation, glue filament, and glue splashing
Better overall quality of label application

Greater performance and ergonomics
Boosted production uptime
Sustainable and quality production

Greater performance and ergonomics
Boosted production uptime
Sustainable and quality production

Greater performance and ergonomics

The EvoDECO Roll-Fed labeller can generate outputs of up to 72,000 bph at an efficiency rate of 98%:

The reels auto-splicing system can be activated at very high speeds of up to 30,000 containers per hour, resulting in improved productivity
The ergonomics of the solution have been significantly optimised, as reflected by the linear design of the roll-fed station
All main components fully visible and accessible during production and maintenance
Cleaning can be carried out automatically during production by a system installed on the vacuum drum, which removes any glue residual for higher performance

Boosted production uptime

While developing the EvoDECO Roll-Fed labeller, ease of operations has been high on the Sidel engineers’ agenda, as this is instrumental in securing maximum flexibility and performance:

The solution can be controlled and adjusted via a human-machine interface (HMI) which is integrated within the labelling station
An automatic label extraction system, protected by Sidel patent, ensures no downtime occurs due to labels being not properly applied on the bottle or no bottles being present, for a smooth and consistent flow of production
Label application is carried out with a pad-to-pad transfer which ensures a very stable and accurate process, even at high speeds
The vacuum drum is built in light-weight sectors for easy and quick replacement and reduced maintenance time

Sustainable and quality production

With an integrated glue tank, patented vertical melter and heating control, glue is melted on demand and circulated always at a precise temperature and in smaller quantities:
