Side load case packer

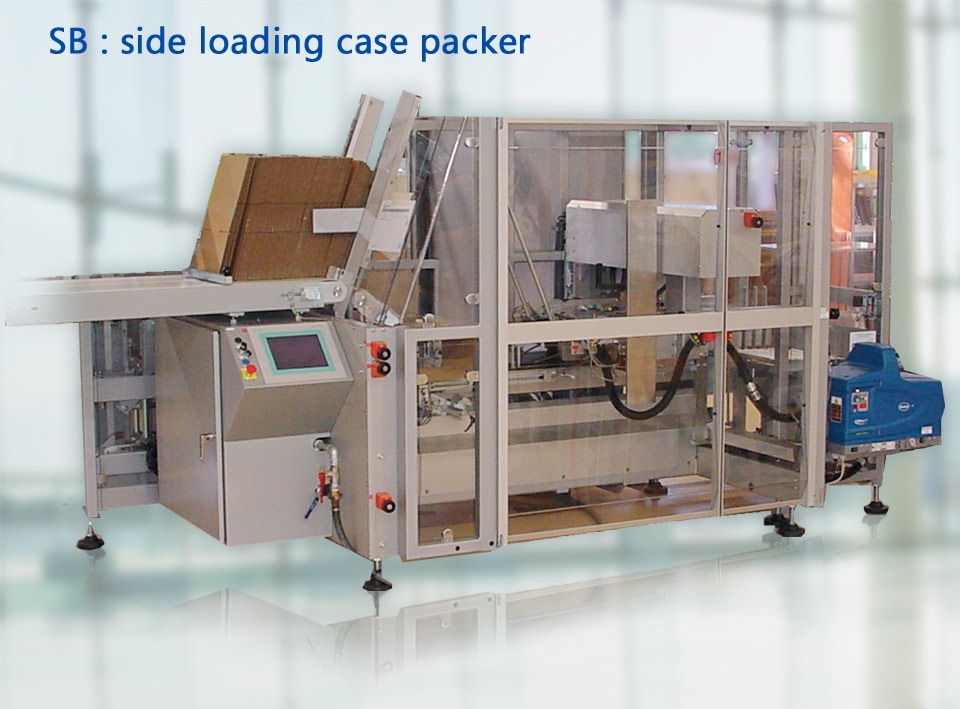

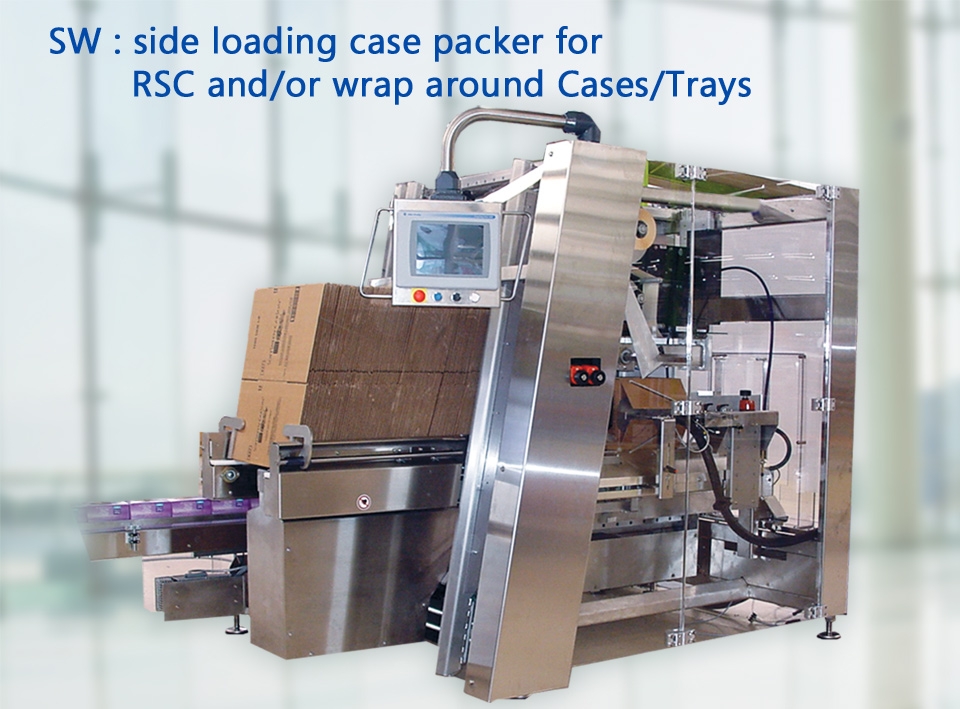

Cermex SB & SW

TOP 3 BENEFITS:

Direct access into the machine at floor level

Product retention zones minimized

Compact and ergonomic machine design

PRODUCT INFORMATION

The products are fed in by single-layer simple transfer or by a mechanical or servo-driven elevating or lowering stacker.

This multi-function equipment has a compact layout and footprint with easy access and operability:

Case magazine height lowered to improve blank handling by the operator.

Cantilever design of the case transfer mechanism.

Absence of product retention zones so that products fall directly on the ground, at the infeed,collation and loading stations, thanks to sloping plates

Maximum product tracing guaranteed.

Hygienic operating conditions.

Size changeover times optimised thanks to centralised setting points and the integration of changeover assistance via IVO digital counters (as an option)

Speeds of up to 13.5 cases/min for the 2-station model and 20 cases/min for the 3-station model.

Options:

Product and batch control by vision system.

Integration of the labeling operation.

For requirements in terms of speed and smooth handling, the loading operation can be carried out by a “Pick & Pack” gripper: 2-axis, 3-axis, 6-axis, or Scara.

Integration of Track & Trace solution for serialization, for greater traceability (in option)

Features

Product packing

Stocking of blanks in a flat magazine with motorized belt.
Extraction and presentation of the flat blank at the forming station by an arm fitted with suction cups.
Erection and squaring of the static case by rotating arm and lower support ramp.
Flap deflection and guiding of the batch of products into the case by rotating bridge and loading funnel.
Motorized transfer of the batch into the case.
Pre-folding of the long flaps whilst case is stationary, followed by progressive folding during transfer

Hot-melt version

Motorized transfer of the cases (held square) by mechanical shuttle with speed control for even application of glue strips.
Case halted at the pressing station by upper stop.
Pressure applied evenly to case sides to ensure gluing and squaring of the case prior to outfeed.

Adhesive tape version

Motorized transfer of the cases (held square) by mechanical shuttle.
Positive transfer of the case by motorized belts for sealing by applying adhesive tape.

Product packing

Stocking of blanks in a flat magazine with chains advancing mechanically and guide to maintain stability.
Positive case extraction and forming (patented system) by two rotating arms fitted with suction cups.
Flap deflection and guiding of the batch of products into the case by rotating bridge and loading funnel.
Motorized transfer of the batch into the case.
Folding and holding of the inner flaps.
Pre-folding of the long flaps whilst case is stationary, followed by progressive folding during transfer.

Hot-melt version

Motorized transfer of the cases (held square) by mechanical shuttle with speed control for even application of glue strips.
Pressure applied evenly to case sides to ensure gluing and squaring of the case prior to outfeed.

Adhesive tape version

Motorized transfer of the cases (held square) by mechanical shuttle.
Positive transfer of the case by motorized belts for sealing by applying adhesive tape.

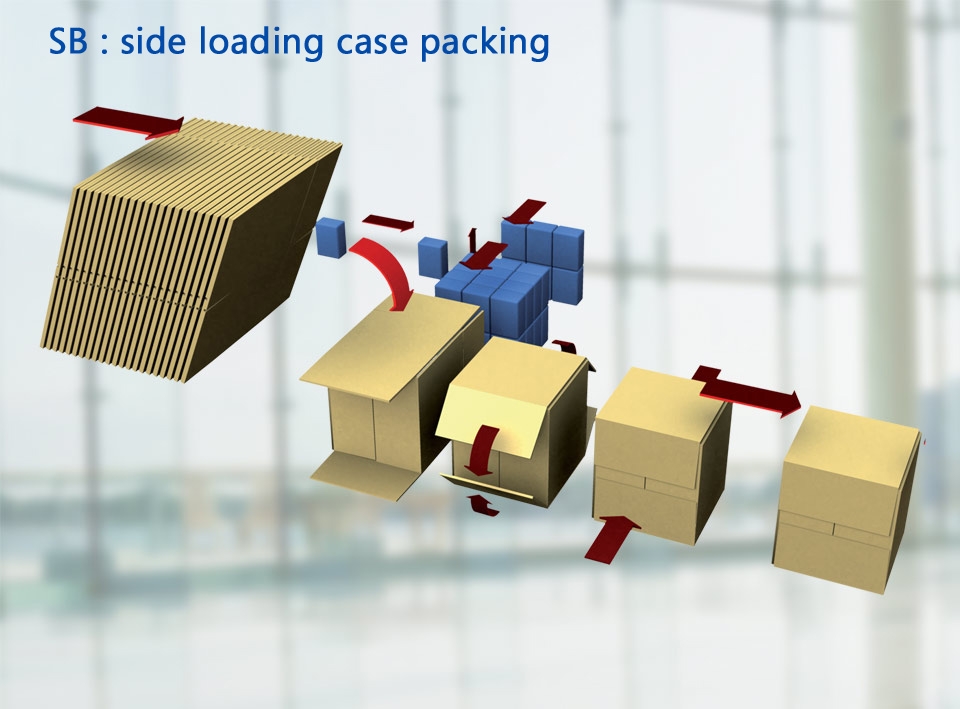

SB

Product packing

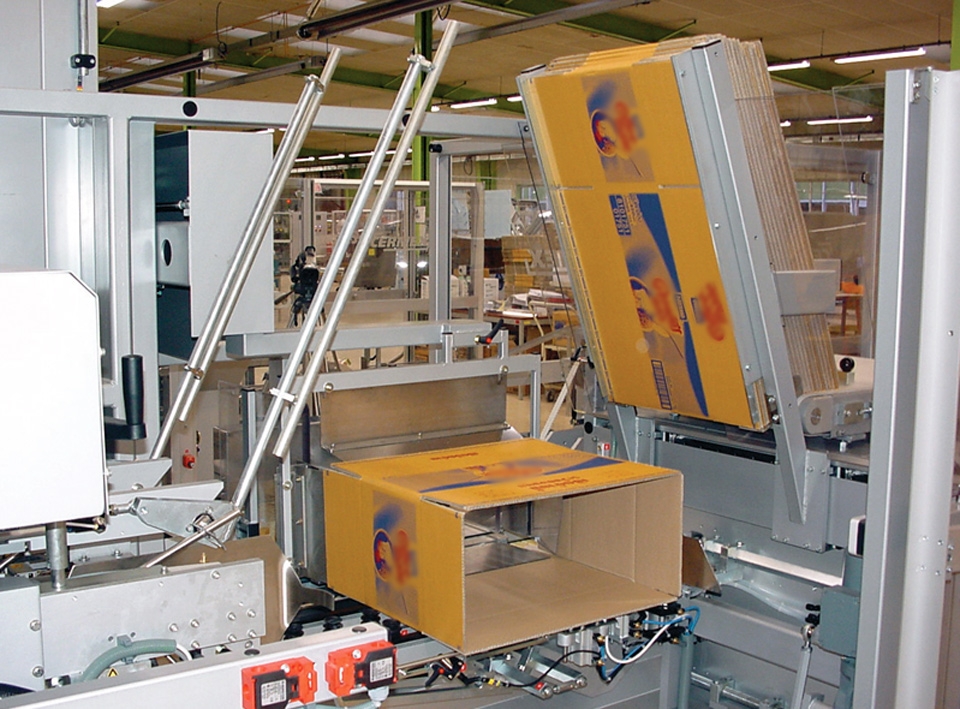

Stocking of blanks in a flat magazine with motorized belt.
Extraction and presentation of the flat blank at the forming station by an arm fitted with suction cups.
Erection and squaring of the static case by rotating arm and lower support ramp.

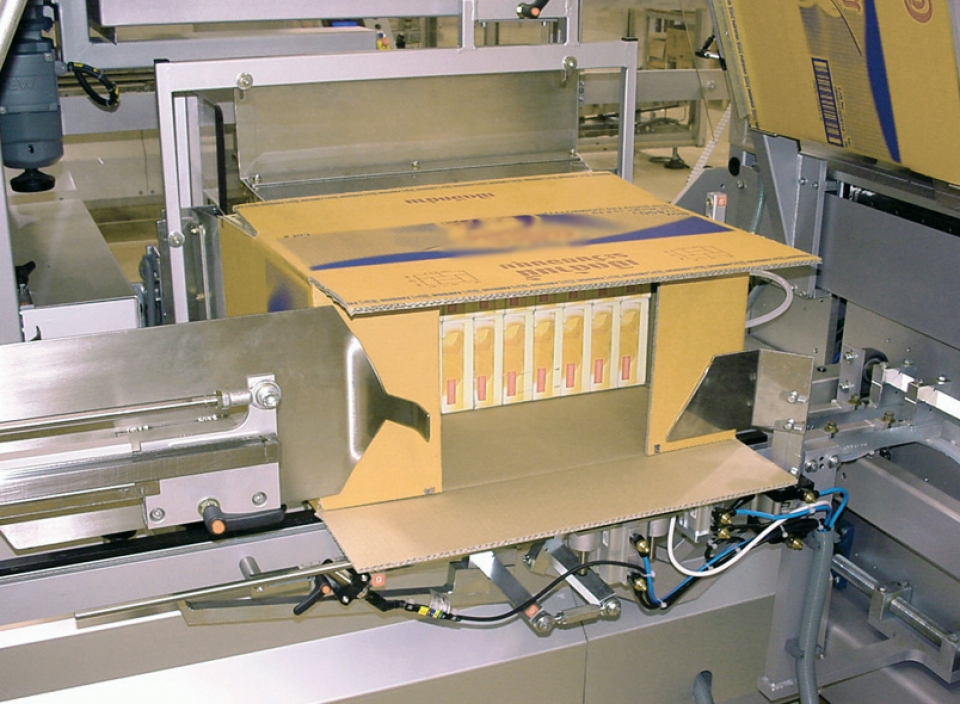

Flap deflection and guiding of the batch of products into the case by rotating bridge and loading funnel.
Motorized transfer of the batch into the case.
Pre-folding of the long flaps whilst case is stationary, followed by progressive folding during transfer

Hot-melt version

Motorized transfer of the cases (held square) by mechanical shuttle with speed control for even application of glue strips.
Case halted at the pressing station by upper stop.
Pressure applied evenly to case sides to ensure gluing and squaring of the case prior to outfeed.

Adhesive tape version

Motorized transfer of the cases (held square) by mechanical shuttle.
Positive transfer of the case by motorized belts for sealing by applying adhesive tape.

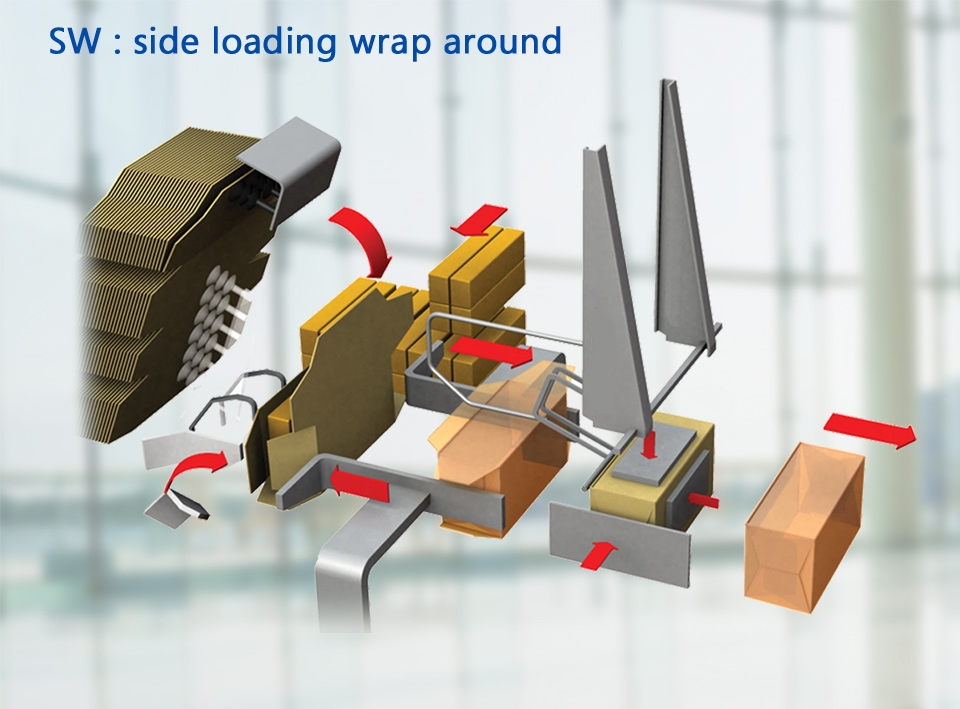

SW

Product packing

Stocking of blanks in a flat magazine with chains advancing mechanically and guide to maintain stability.

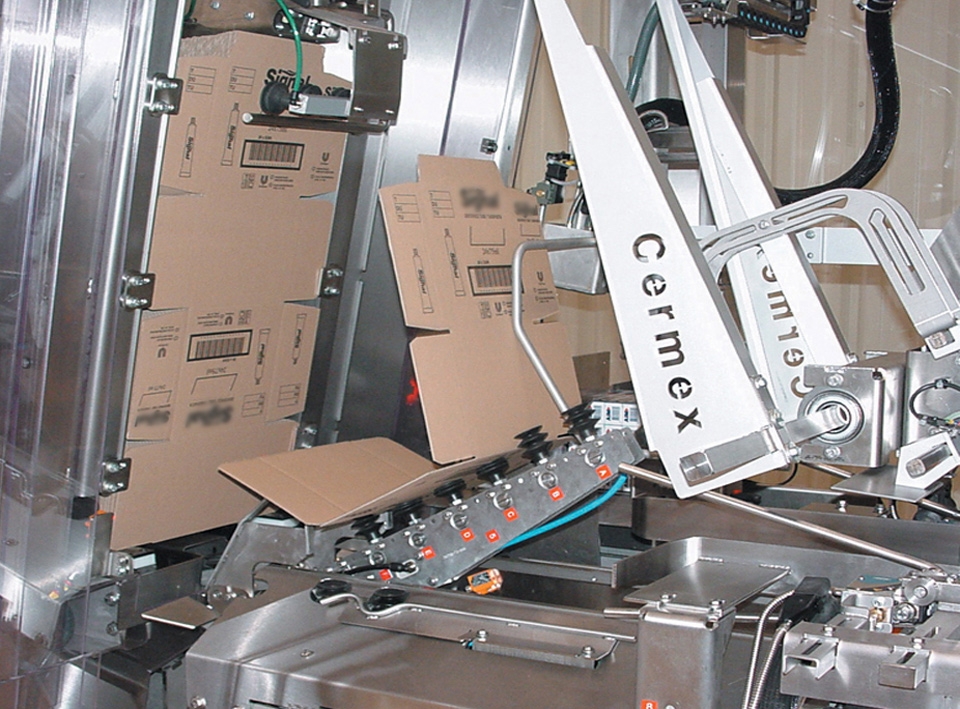

Positive case extraction and forming (patented system) by two rotating arms fitted with suction cups.
Flap deflection and guiding of the batch of products into the case by rotating bridge and loading funnel.
Motorized transfer of the batch into the case.
Folding and holding of the inner flaps.
Pre-folding of the long flaps whilst case is stationary, followed by progressive folding during transfer.

Hot-melt version

Motorized transfer of the cases (held square) by mechanical shuttle with speed control for even application of glue strips.
Pressure applied evenly to case sides to ensure gluing and squaring of the case prior to outfeed.

Adhesive tape version

Motorized transfer of the cases (held square) by mechanical shuttle.
Positive transfer of the case by motorized belts for sealing by applying adhesive tape.
