High-speed bottle infeed

TOP 3 BENEFITS:

  • High-speed collation and positioning for all types of plastic bottles
  • Reliable concept
  • Optimized product protection with this continuous-motion solution

PRODUCT INFORMATION

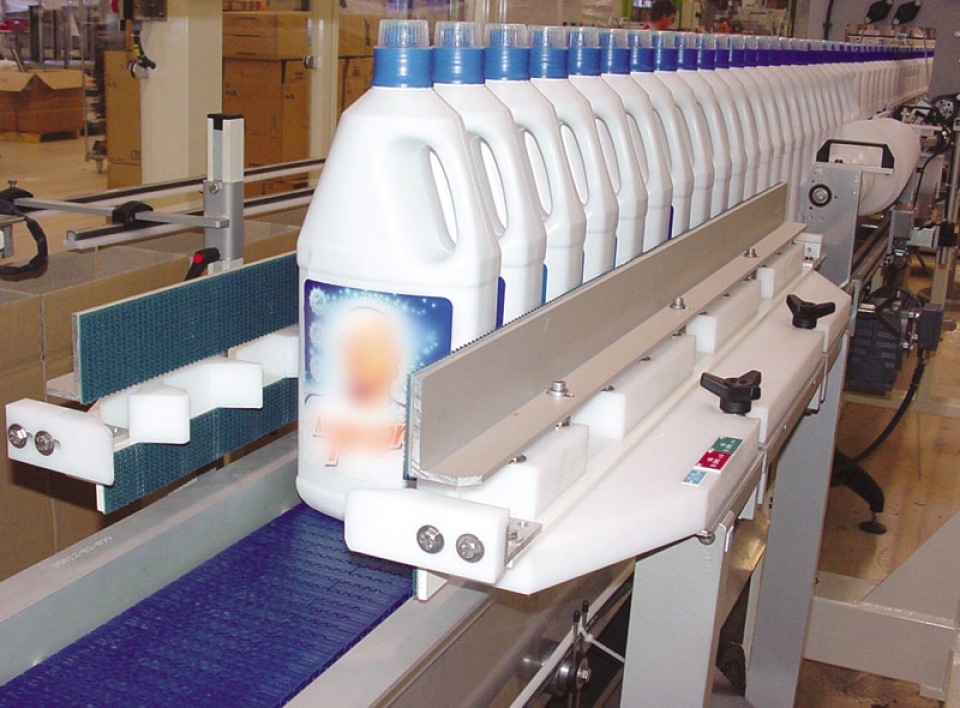

The high-speed bottle infeed is a handling & positioning module for continuous product infeed on a single lane (with bottles turned where necessary) where the product batch is transferred to the gripping station in a continuous motion.

It is a reliable concept thanks to a product transfer mechanism perfectly synchronized with the scroll speed via a numeric control system.

  • Flexible infeed designed to handle products with complex shapes (difficult to accumulate) and in different sizes: bottles with or without puck support
  • Quick and simple format changeovers requiring only one operator
  • Silent system
  • Servo-driven
  • Speed: up to 450 products per minute, depending on the nature and size of the products
Contact

Download

Cermex Infeed | Brochure

Features

  • Flexible infeed designed to handle products with complex shapes (difficult to accumulate) and in different sizes: bottles with or without puck support

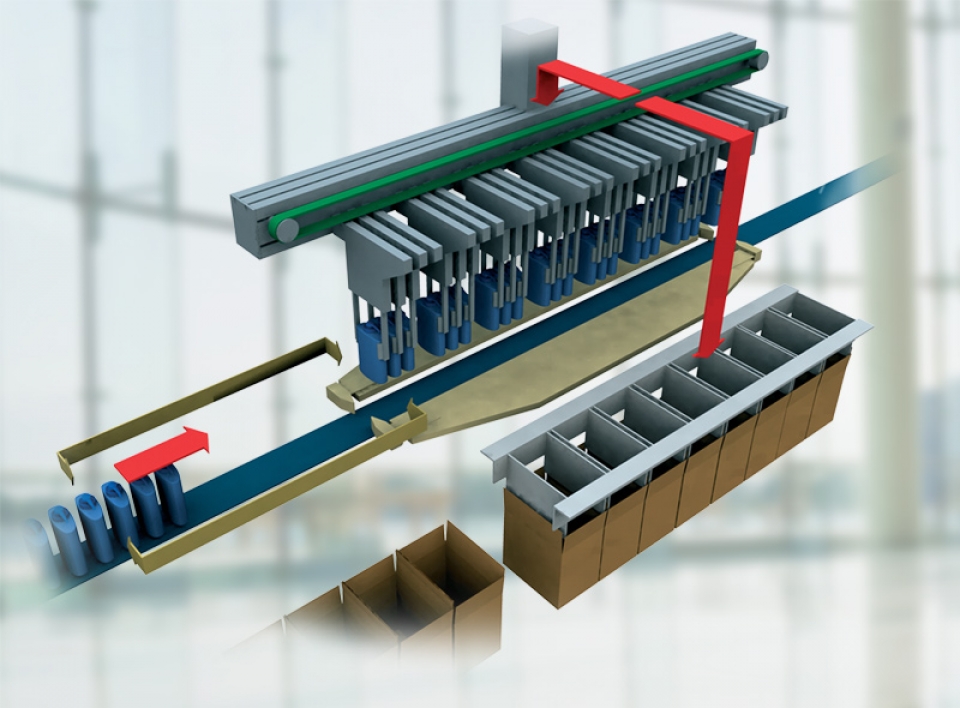

  • Products arriving in line on a conveyor are collated into batches of 2 or more, without stopping the products
  • Product infeed in accumulation on a motorized conveyor
  • Continuous orientation and spacing out of the products obtained by two servo-driven lateral scrolls
  • At the outfeed of the scrolls, transfer of the products onto a second servo-driven conveyor slaved with the product flow

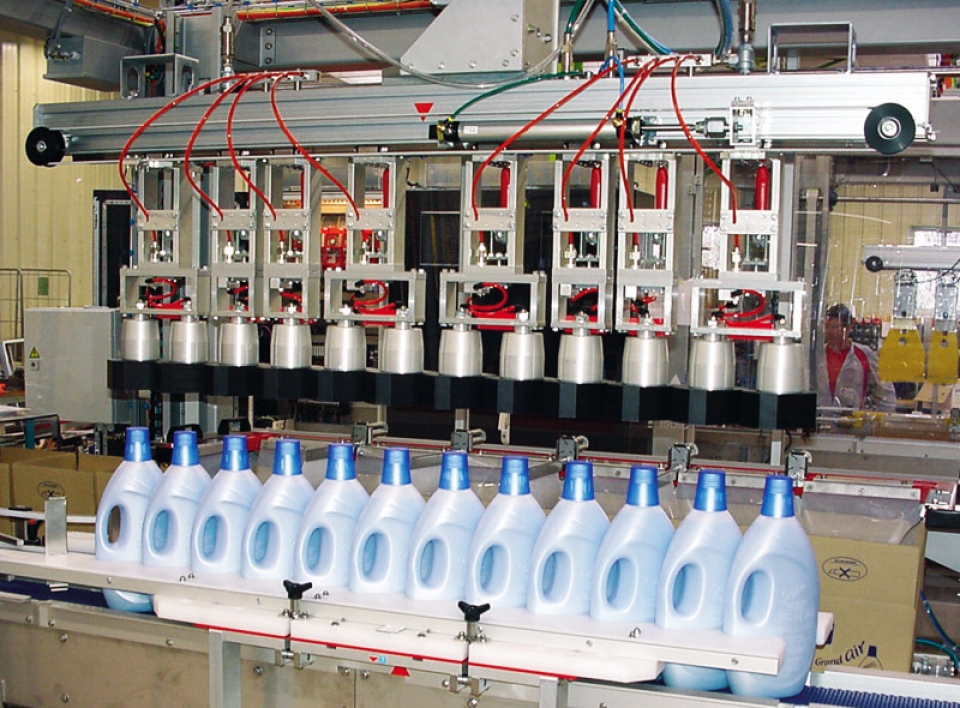

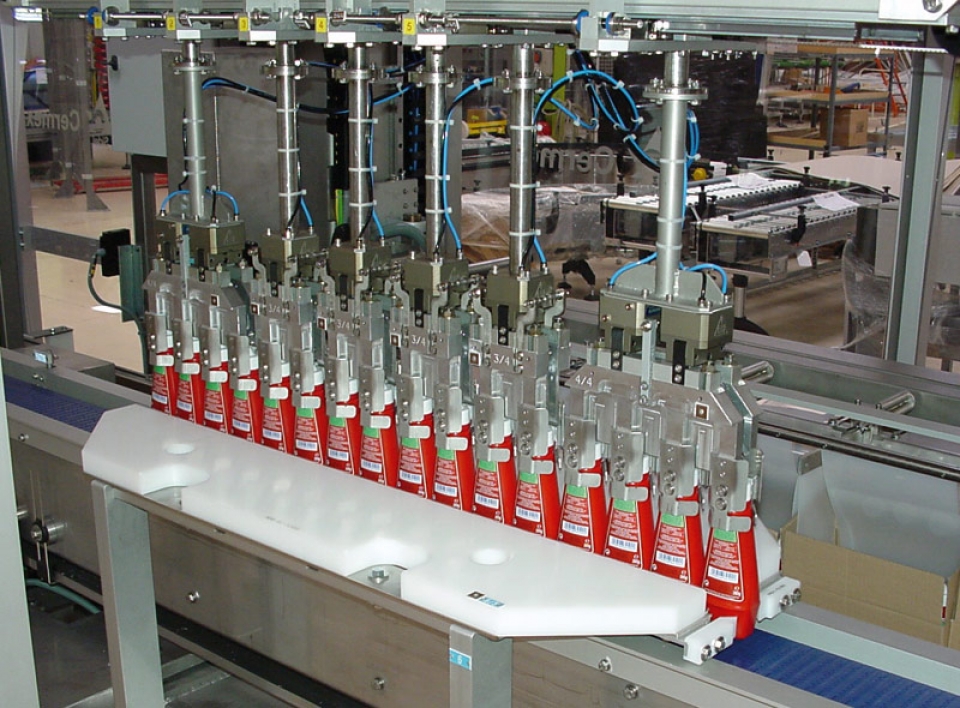

  • Positive transfer of the product batch to the gripping station carried out by a servo-driven shuttle equipped with lateral combs perfectly adapted to the shape of the product row
  • Silent and easy accessible system
  • Servo-driven solution
  • Low maintenance thanks to simple mechanical design



  • Speed: up to 450 products per minute, depending on the nature and size of the products





  • Option: Single-axis phaser (2 belts,2 bracket trains) depending on the speed and type of product



  • Design specifications
  • Performance
  • Options

Design specifications

  • Flexible infeed designed to handle products with complex shapes (difficult to accumulate) and in different sizes: bottles with or without puck support
  • Products arriving in line on a conveyor are collated into batches of 2 or more, without stopping the products
  • Product infeed in accumulation on a motorized conveyor
  • Continuous orientation and spacing out of the products obtained by two servo-driven lateral scrolls
  • At the outfeed of the scrolls, transfer of the products onto a second servo-driven conveyor slaved with the product flow
  • Positive transfer of the product batch to the gripping station carried out by a servo-driven shuttle equipped with lateral combs perfectly adapted to the shape of the product row
  • Silent and easy accessible system
  • Servo-driven solution
  • Low maintenance thanks to simple mechanical design



Performance

  • Speed: up to 450 products per minute, depending on the nature and size of the products





Options

  • Option: Single-axis phaser (2 belts,2 bracket trains) depending on the speed and type of product
