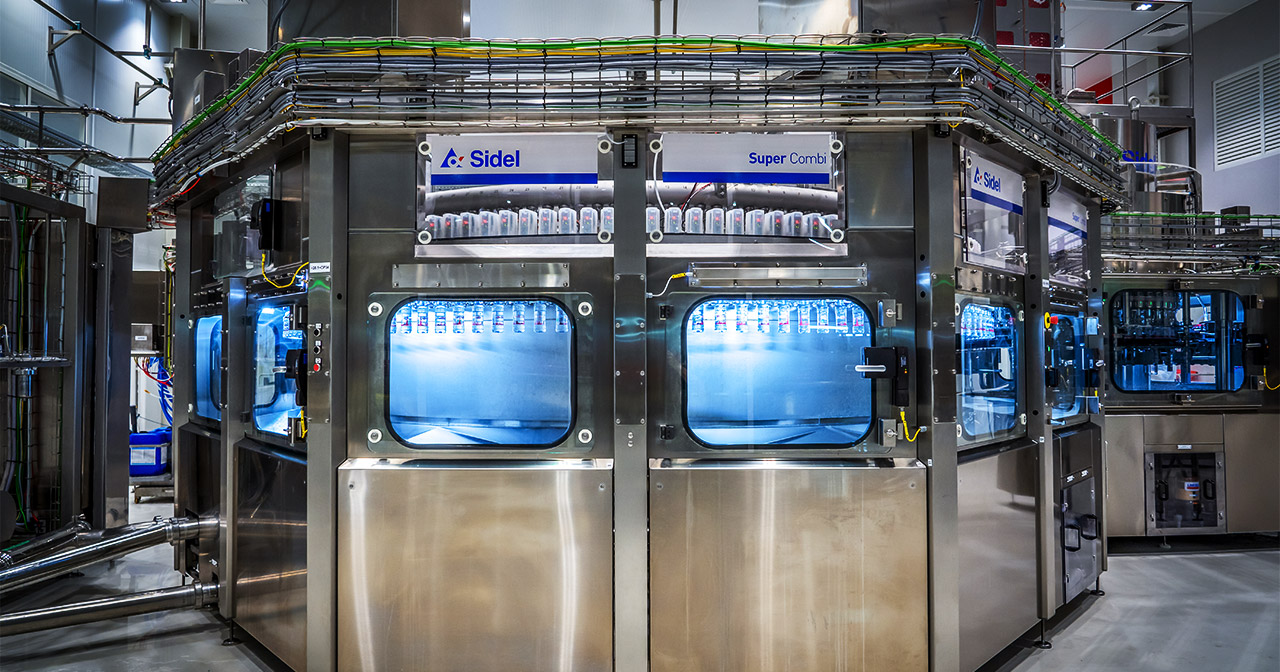

EvoFILL PET

Sidel's EvoFILL PET is the most technologically advanced filler for PET, combining the best hygienic conditions with a greater flexibility, sustainability and performance level. This results in outstanding product quality and lowest TCO.

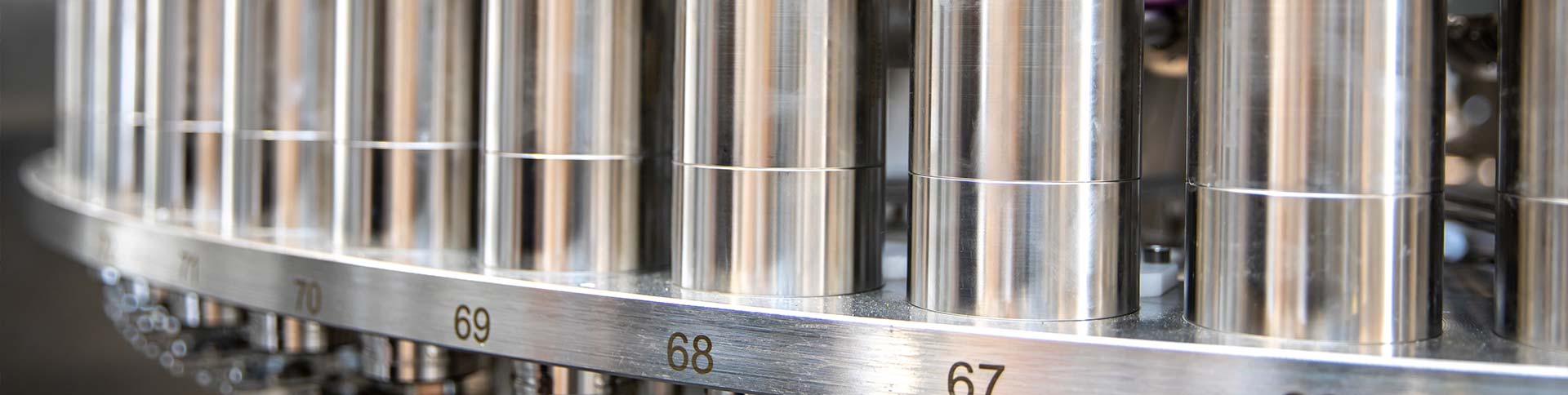

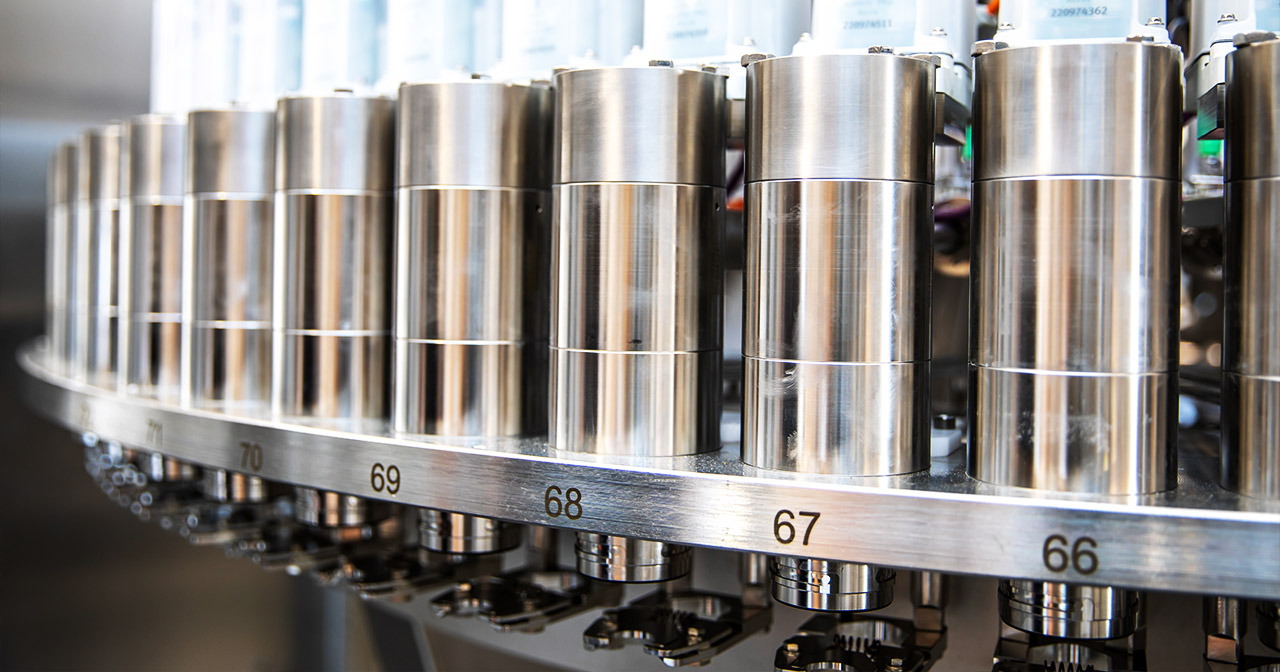

With 24 to 144 filling valves on EvoFILL PET carousel, water and still drinks manufacturers can handle a wide range of speeds and bottle sizes, from 0,1L up to 10L. Beverage and filling flexibility is no longer an issue.

Running at up to 90,000 bottles per hour, with an increased efficiency up to 99%, EvoFILL PET allows precise filling control and accuracy. Moreover, filling machine reduces footprint up to 15%[1], thanks to a more compact front table and process unit.

As all our equipment, Evofill PET features Sidel Digital Platform, Evo-ON. This system optimise maintenance operations, reducing unplanned downtime, monitoring energies and resources and boosting efficiency.

Top three benefits:

  • Reduced footprint
  • Performance
  • Quality



[1] vs previous model, assuming Dp2160

Features

Sidel EvoFILL PET uses well-known solutions in filling environment to guarantee advanced quality for absolute food safety

  • Flowmeter contactless filling
  • Stainless steel AISI316L for product contact surfaces

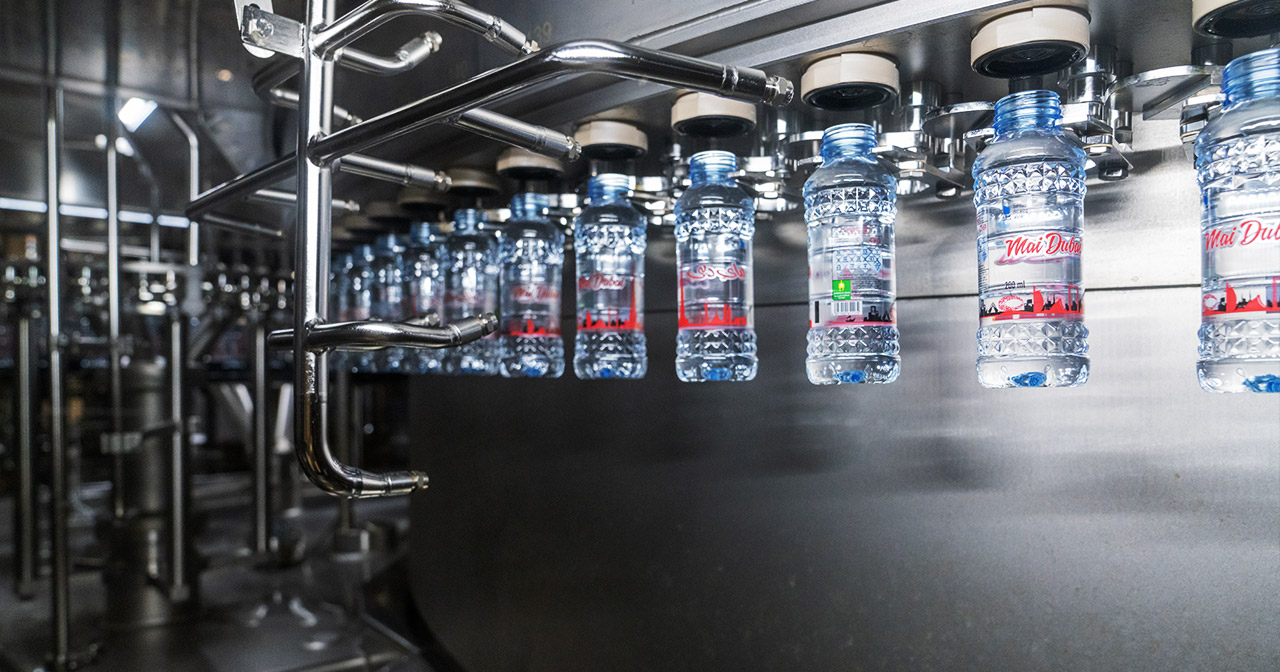

  • Neck handling – hygienic design grippers and transfer star-wheels
  • Automatic CIP dummy cups: no manual operation inside filling environment after internal cleaning
  • Automatic external cleaning of the whole filling environment
  • External cap buffering system in the dry area
  • Dedusting and decontamination units installed downstream caps buffer

EvoFILL PET is taking care of your products, maximising hygiene:

  • Accurate and gentle neck handling for high quality bottles
  • Optimised layout, reducing number of bottle transfer star-wheels
  • Height adjustable outfeed conveyor
  • Optimised handling for lightweight containers

Improving accessibility, and using a limited number of parts, changeover operations have never been so easy:

  • Toolless quick change design with changeover parts color coding
  • Automatic format changeover system available ensuring less than 5 min
  • Enhanced ergonomy for easy changeover operations

Sidel EvoFILL PET offers massive energy and CO2 savings, thus reducing Total Cost of Ownership (TCO):

  • Energy saving
    • Drive with servomotors
    • Reduced footprint with optimized output/m²
    • Reduced power consumption in case of Integrated CIP System[1]
  • Maintenance saving
    • Key components extended lifespan
    • Design simplification (infeed starwheels removal)
  • Reduced water and chemicals consumption
    • Minimal water losses during internal cleaning (<400 l[2]) vs previous models, for each cycle
    • -12% water and chemical for external cleaning[3] vs previous models, for each cycle



[1] -25% absorbed power (and installed power from 120kW to 90kW) vs previous models

[2] Evaluation based on 3 step CIP process with external CIP unit, average filler size

[3] Evaluation based on 3 step COP process – bottle way, average filler size
