Combi for Edible Oil

Combi for Edible oil, sauces & dressings

Built from the very first roots of Sidel, our holistic approach to the edible oil-bottling environment contributes to deliver the high level of performance you need, thanks to:

Innovative & cost-driven packaging design solutions

One-stop shop guaranteeing a 90% line efficiency

Unique interlocutor with full responsibility (packaging & manufacturing)

Leading-edge equipment and state-of-art technology

Asset optimization along the line lifecycle

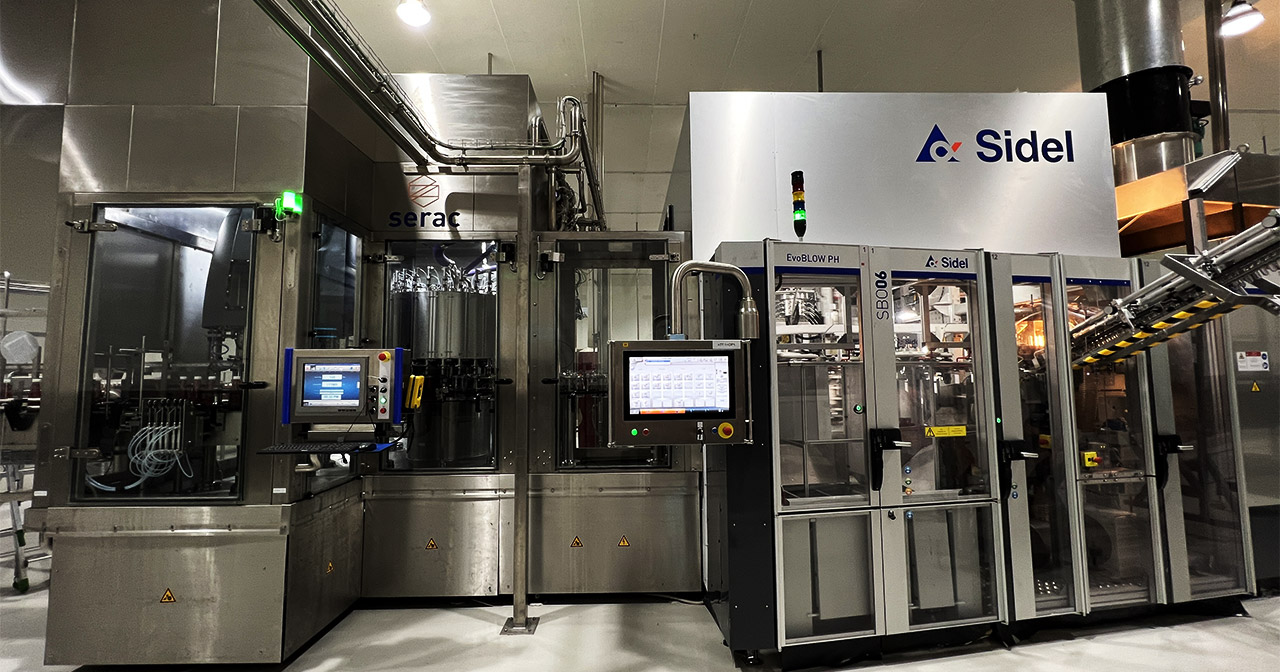

Today, Sidel offers a new Combi solution dedicated to edible oil, sauces & dressings embedding the unparalleled Blow-Molding expertise of Sidel with the Weight Filling & Capping know-how from Serac.

Top 3 benefits

Optimal bottle path with minimized risks of cross contamination

Footprint reduction up to 30% thanks to minimum number of equipment & conveying

95% full system efficiency

Other advantages of a Combi solution:

Reduced manpower

Modular design ready to accept future upgrades coping with new requirements

Simple and reliable kinematics

Features

98% Overall Equipment Efficiency
Fast & easy changeover: less than 40 seconds per mould
Up to 30% less maintenance
Bottle switch mould and pedestal (Tool-less operations)
45% electrical savings in the oven
Oven heating time lowered by up to 15% thanks to ceramic wall & oven top reflectors
Intelliblower™ Automatic regulation of pre-blow phase for production quality and consistency
Bottle light weighting possibilities
No heating-related neck deformation with neck-down heating technology
Rocking hopper cover, UV lamps & ionized air system to ensure reliable and hygienic preform feeding

Guaranteed nominal quantity of filling, with 0,5g deviation for a 1000g bottle
Permanent Weight Control detecting abnormalities of filling (deformed package...)
Unique technology embedding the control of the quantity after filling
System auto adaptation to intrinsic changes of the product during production cycle
Neck transfer for reliable bottle infeed and quick changeover
No dripping, no splashes thanks to valves with efficient nozzle technology

High autonomy on cap infeed
Driving elements of the screw capper outside the filling zone to eliminate the risk of contamination
Electro Pneumatic torque control on each individual head.
Device fitted to the star wheel to ensure bottle stability and secure capping torque.
Anti-rotating device
Cap changeover in 15 minutes
Integrated bottle rejection system to reduce overall footprint

Shaped bottle blowing
Weight filling
Capping

Shaped bottle blowing
Weight filling
Capping

Shaped bottle blowing

98% Overall Equipment Efficiency
Fast & easy changeover: less than 40 seconds per mould
Up to 30% less maintenance
Bottle switch mould and pedestal (Tool-less operations)
45% electrical savings in the oven
Oven heating time lowered by up to 15% thanks to ceramic wall & oven top reflectors
Intelliblower™ Automatic regulation of pre-blow phase for production quality and consistency
Bottle light weighting possibilities
No heating-related neck deformation with neck-down heating technology
Rocking hopper cover, UV lamps & ionized air system to ensure reliable and hygienic preform feeding

Weight filling

Guaranteed nominal quantity of filling, with 0,5g deviation for a 1000g bottle
Permanent Weight Control detecting abnormalities of filling (deformed package...)
Unique technology embedding the control of the quantity after filling
System auto adaptation to intrinsic changes of the product during production cycle
Neck transfer for reliable bottle infeed and quick changeover
No dripping, no splashes thanks to valves with efficient nozzle technology

Capping

High autonomy on cap infeed
Driving elements of the screw capper outside the filling zone to eliminate the risk of contamination
Electro Pneumatic torque control on each individual head.
Device fitted to the star wheel to ensure bottle stability and secure capping torque.
Anti-rotating device
Cap changeover in 15 minutes
Integrated bottle rejection system to reduce overall footprint
