Cermex WB&BB

TOP 3 BENEFITS:

  • Ultra-smooth operations ensuring packaging quality
  • Total Cost of Ownership slashed, with 30% electricity savings
  • Easy changeovers in less than 5 minutes

PRODUCT INFORMATION

Our Cermex WB&BB wrap-around case and tray packers boast a high level of hygiene and enhanced ergonomics.

Their open design means that there are fewer dust and fluid retention zones, and cleaning is made easier by improved access to the machine parts. The WB and BB are fitted with hygienic and low-maintenance thermoplastic polyurethane timing belts (FDA approved).

Additionally, a new motion system has been designed for these wrap-around case and tray packers, comprising:

  • A new automation platform with electronic synchronization
  • Enhancement of the case handling part, removal of the chains
  • Greater precision on case positioning
  • Fully compliant with OMAC and Pack ML standards

With the Cermex WB&BB wrap-around case and tray packers, changeovers are easy and quick (5 minutes). Adjustments are done automatically - case length, width and height - and the machine is fitted with new unlock / lock push buttons for ultra-fast adjustments. Thanks to its quick release systems, the replacement of change parts is ultra-rapid.

Integration of Track & Trace solution for serialization, for greater traceability (in option)

Features

Cermex WB&BB offers state-of-the-art ergonomics:

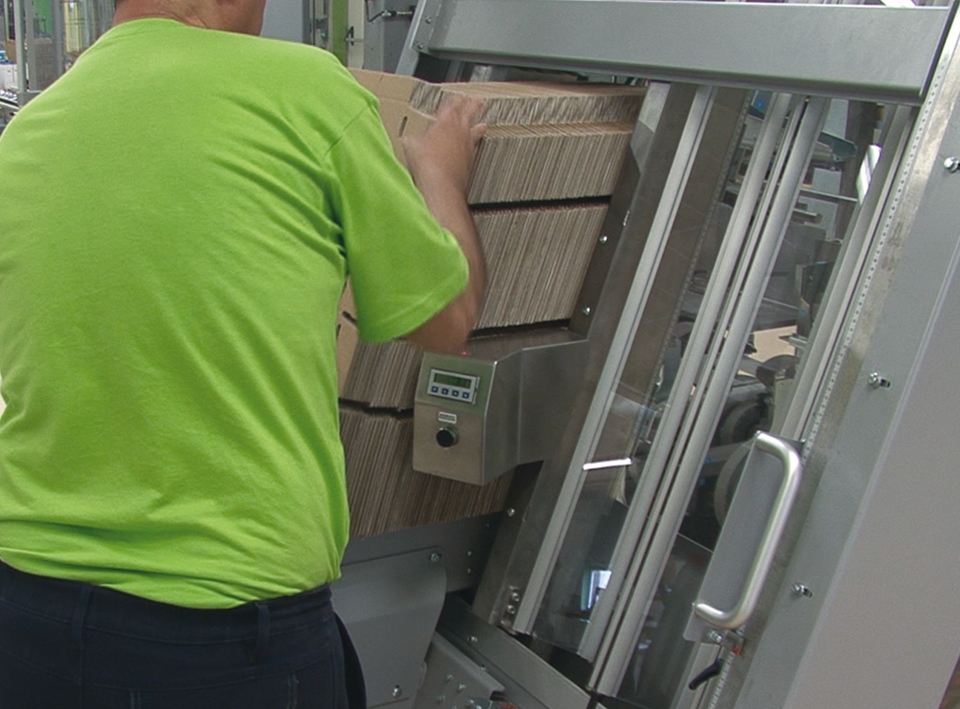

  • Blank magazine at fixed height of 850 mm
  • Sturdy large guard doors for optimal visibility
  • Full access to the inside of the machine
  • User-friendly HMI: direct access to diagnostic pages
  • 12’’ HMI panel with more functionalities

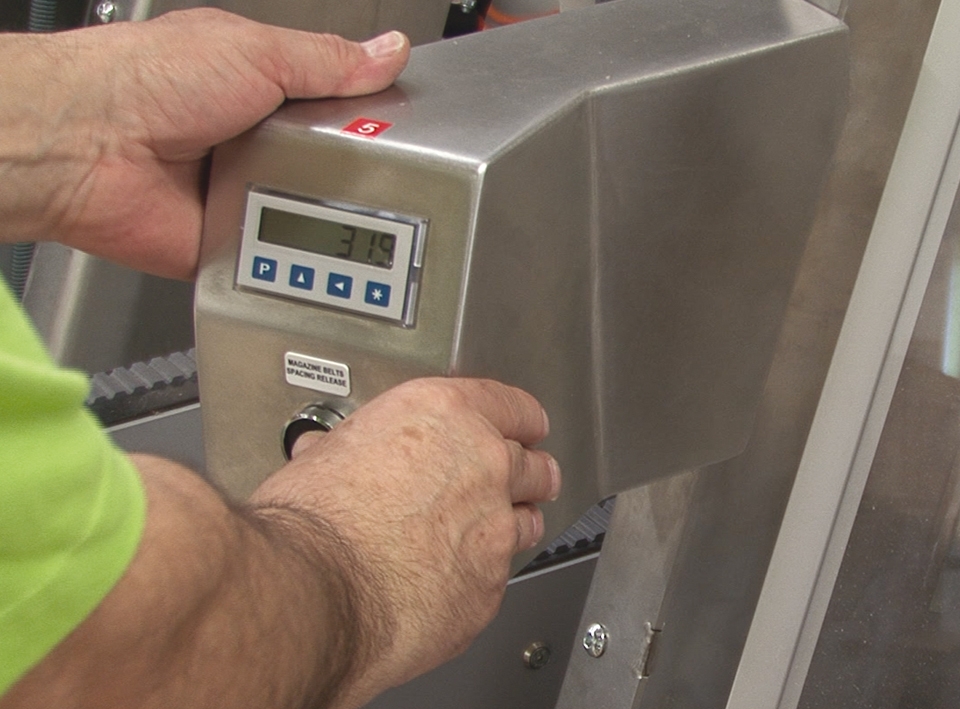

  • Stocking of blanks in a fix flat magazine with motorized belt, 1500mm long.

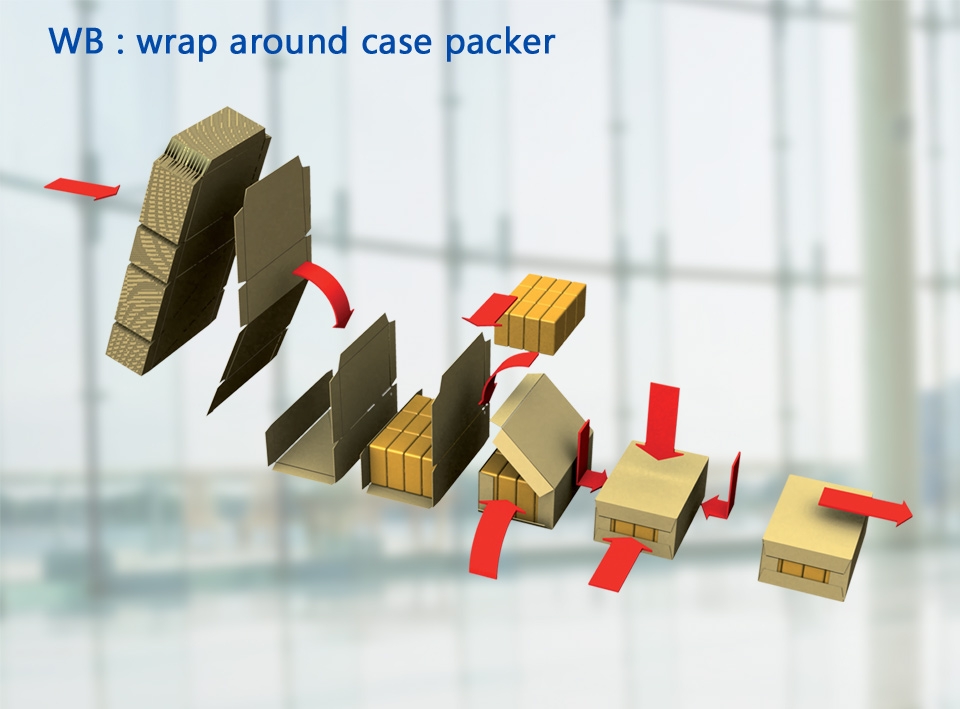

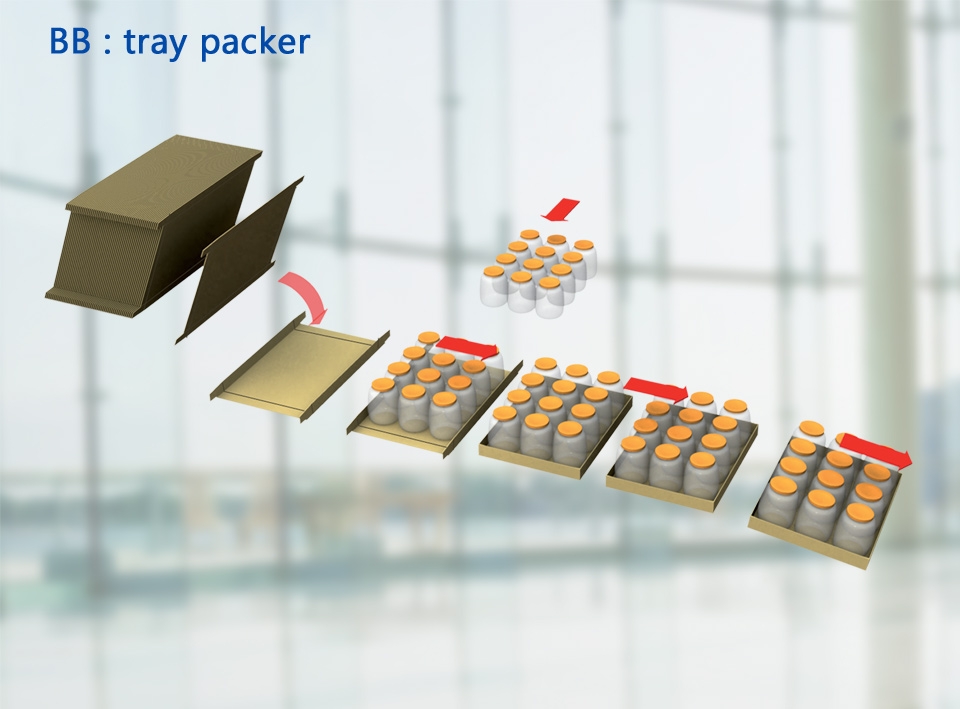

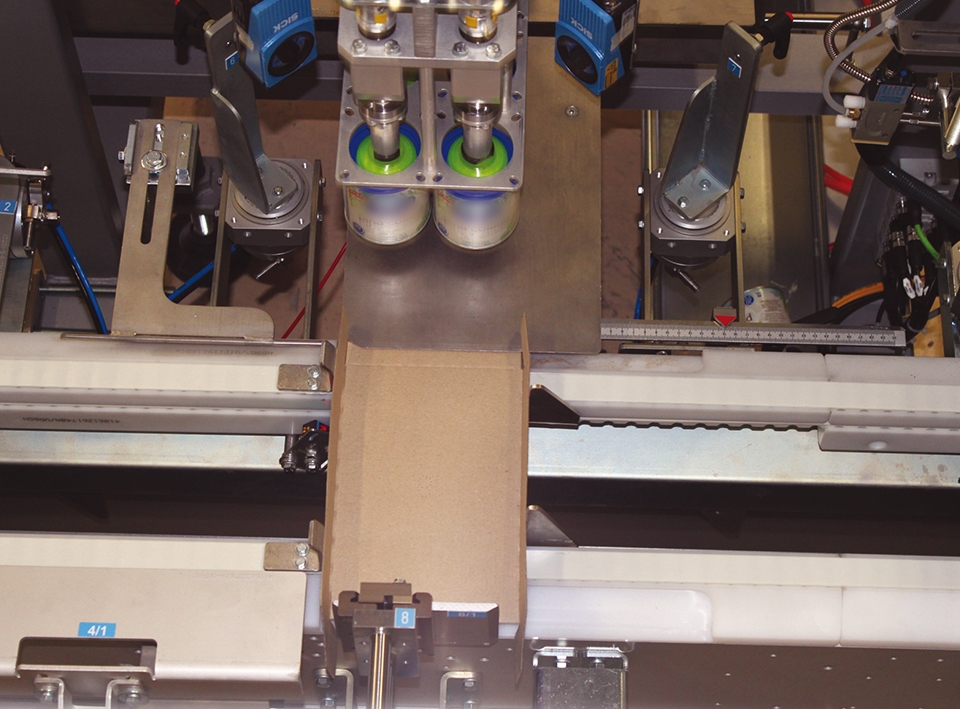

  • Positive extraction and accurate positioning of the blank in a U-shape between brackets by a rotating arm with suction cups.
  • Blank held between brackets by folding and guiding the long bottom flaps.

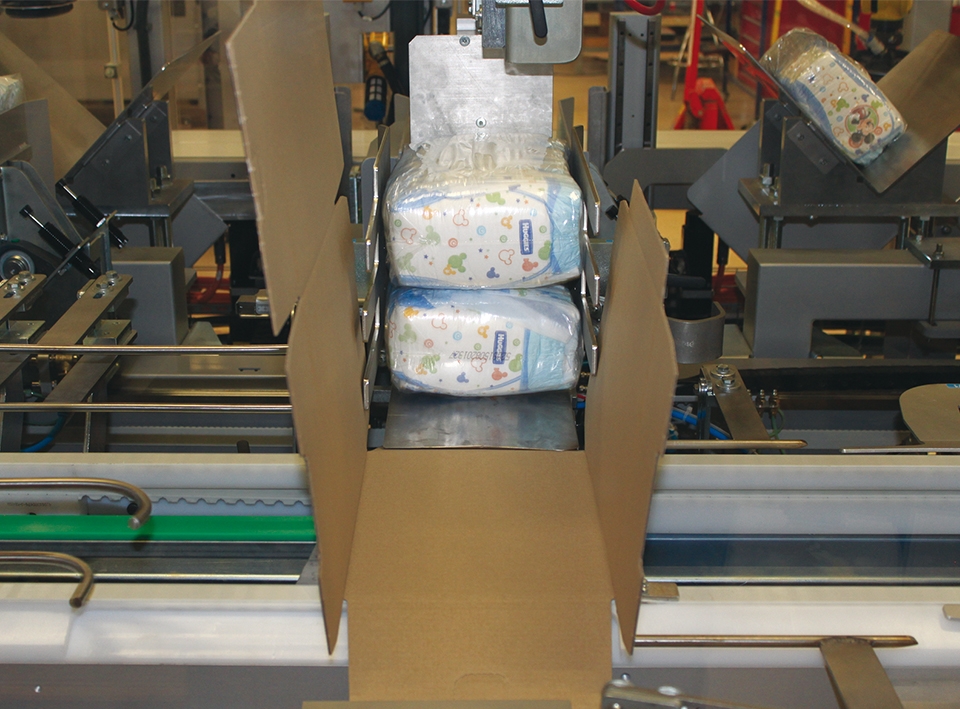

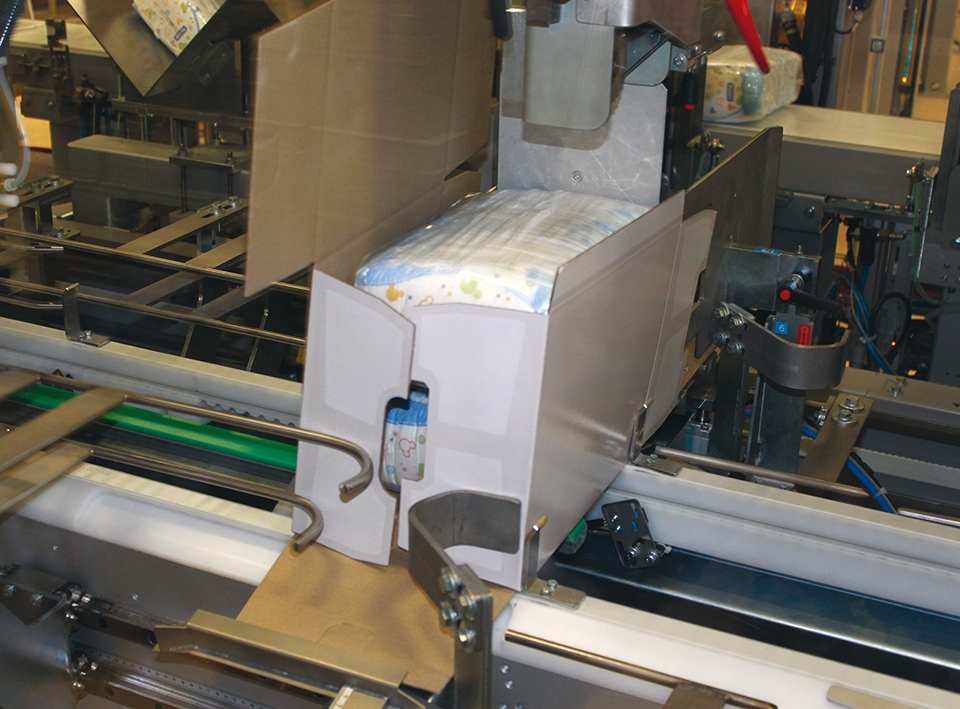

  • Flap deflection and guiding of the batch of products into the blank by bridge and loading funnel.
  • Motorized transfer of the batch into the blank with front and rear guides.
  • Product batch held stable inside the blank by folding the inner flaps.
  • Motorized transfer of the blanks by mechanical belt shuttle advancing step by step.
  • Gluing of the joining lug by glue gun mounted on a motorized mobile support.
  • Lid folding by fixed guide.
  • Progressive folding of long flaps with speed control to apply even glue strips.
  • Application of pressure on 5 sides of the static packaging to guarantee gluing and squaring prior to outfeed.
