Cermex C6 | Case gluers

TOP 3 BENEFITS:

  • Flaps folded in line
  • Guaranteed squaring of the case
  • Extensive size range capability



PRODUCT INFORMATION

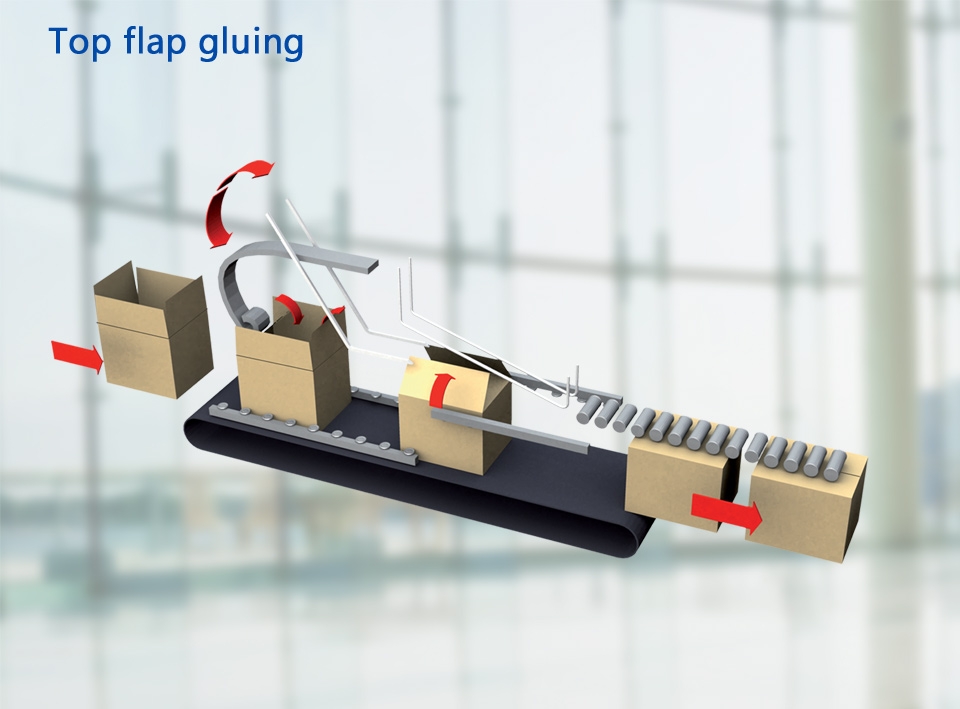

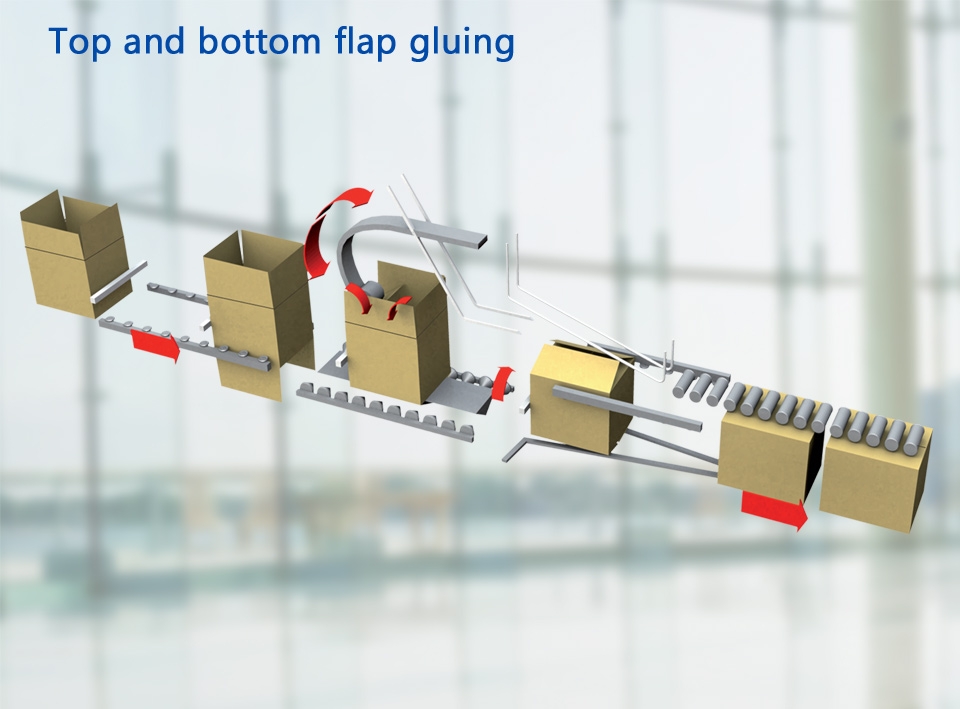

For low to high speed lines, the C6 case gluer is the optimum choice. Flap gluing can be done at the top as well as at both top and bottom, and the machine implements a continuous case transfer operation.

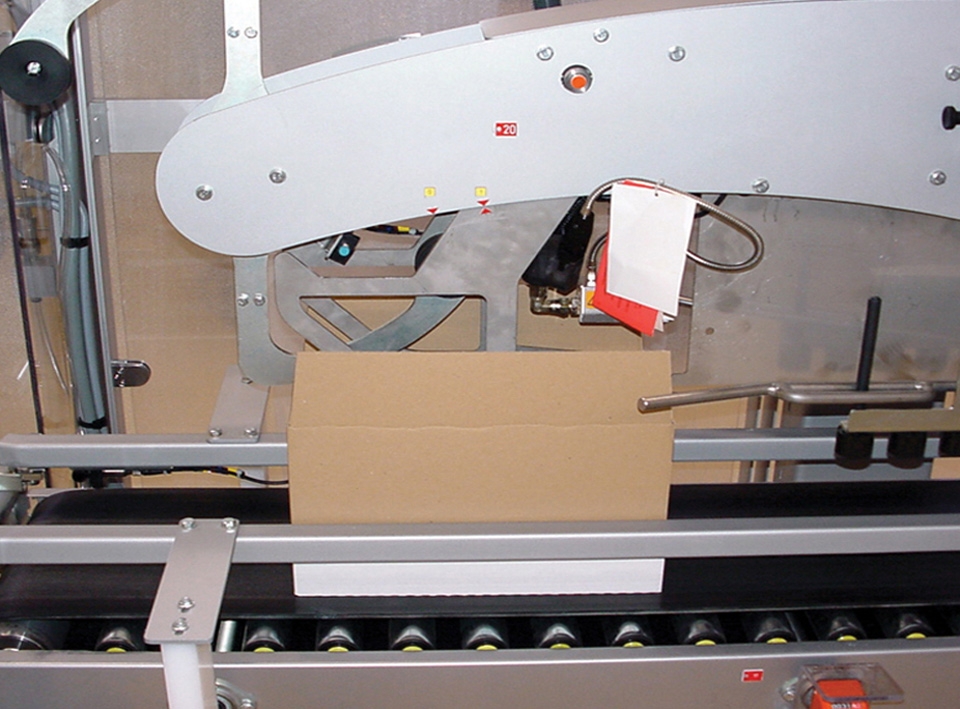

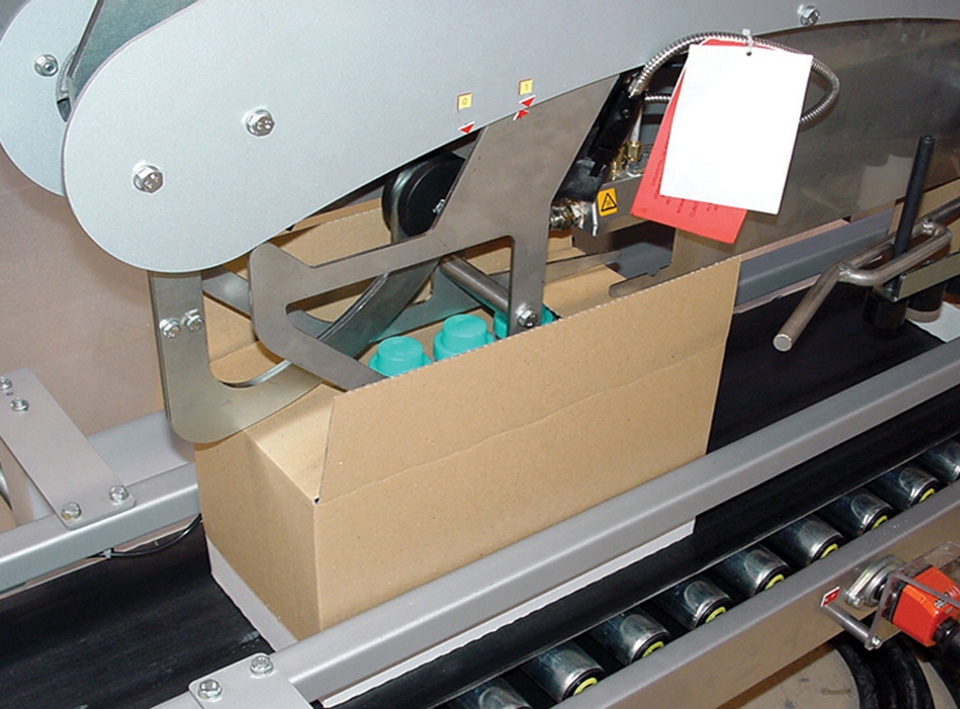

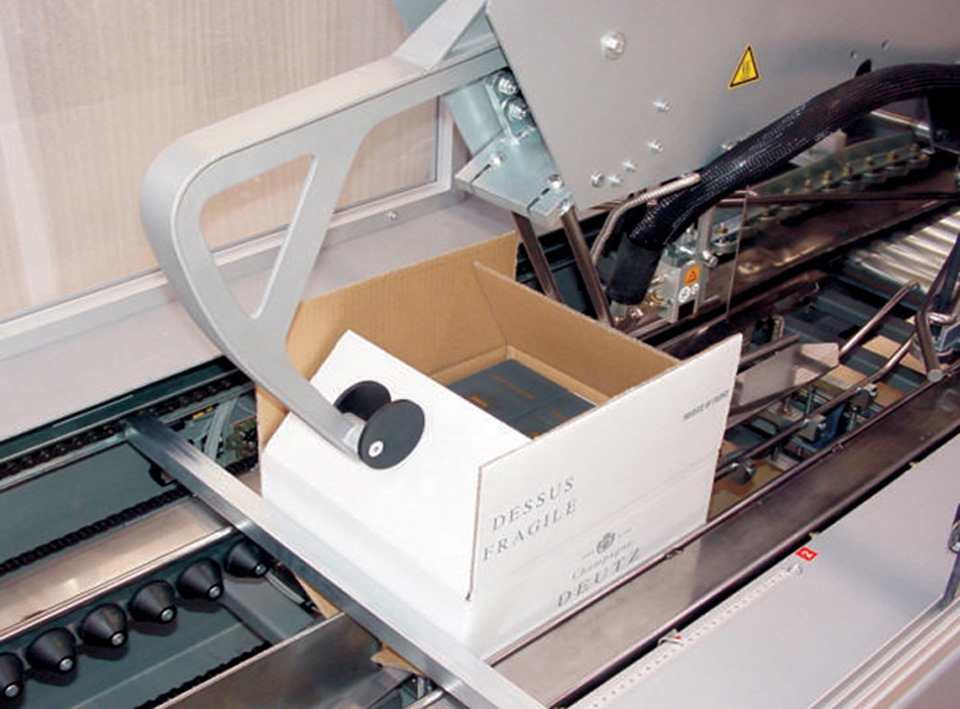

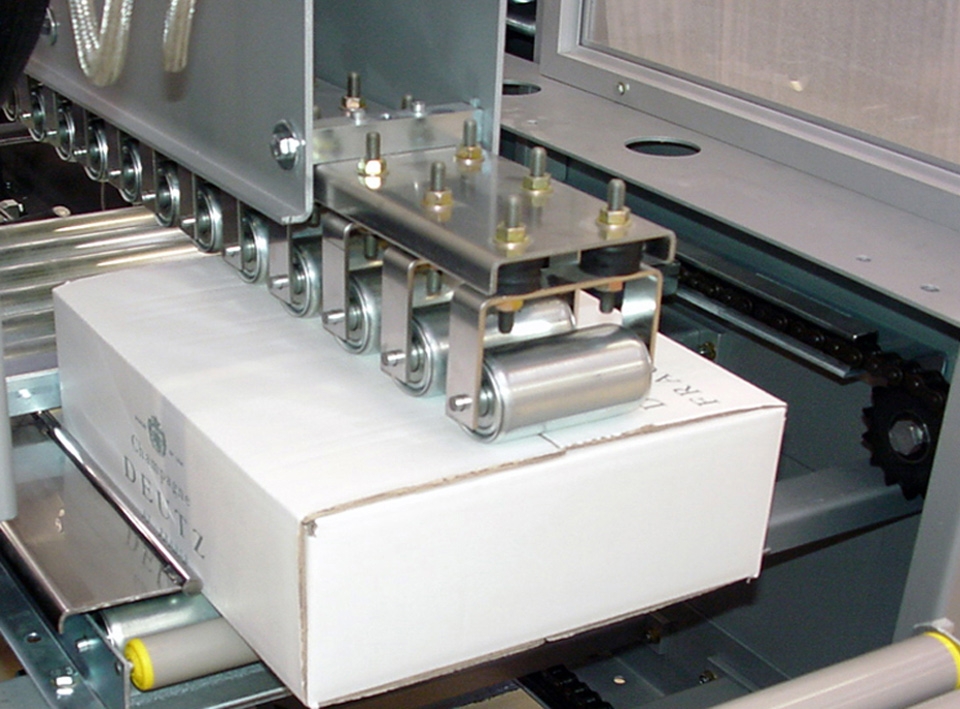

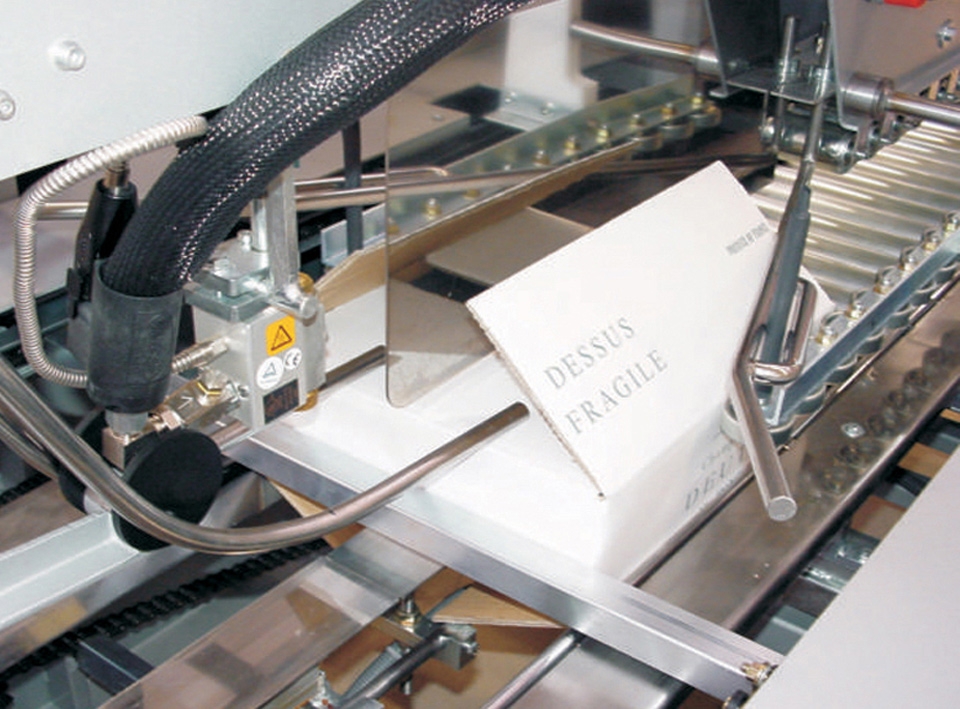

The internal flaps are folded precisely by a fixed guide and an articulated arm, then evenly glued, while the external flaps are folded progressively. Pressure is applied evenly to the sealed case. The C6 also comes with a rotating folding arm for high speeds.

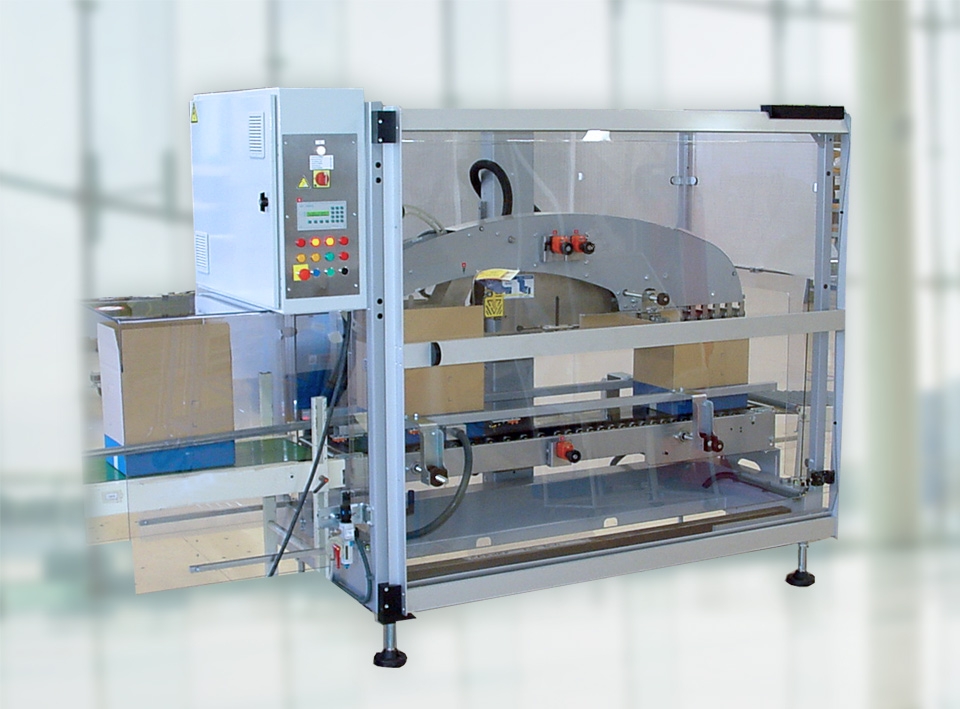

This very compact machine offers versatile layouts and has a robust design. The size range is extensive (small to big RSC) and size changeovers are quick and efficient. The C6 offers a gluing speed of 100 cases/min.



Download

C6

Features

The Ready to Go range boasts a compact and clean design and is highly efficient. Its strong points include:

    • Flaps folded in line
    • Inner flap folding guaranteed
    • Accurate hot-melt gluing (Nordson ProBlue7)
    • Centralized adjustment points for quick format changeovers
    • Siemens PLC & HMI

Ready to Go equipment can be delivered within 3 weeks.

  • Normal flaps as FEFCO 0201
  • Simple fluted cardboard as type E, B, C
  • Minimal weight: 3 kg, counter pressure necessary
  • Length (L): 200/550 mm
  • Width (B): 150/350 mm
  • Height (H): 150/360 mm

  • Detection of unglued flaps
  • Doubling of principle commands panel
  • Handling of double fluted cardboard as EB,EC.
  • Automatic filling of glue tank with 'Nordson fulfill'
  • IT type of neutral
