Case erector

Cermex F3 | Case Erectors

TOP 3 BENEFITS:

Low, medium and high-speed solutions

Positive case handling and high flexibility

More than 1800 machines sold

PRODUCT INFORMATION

With more than 1800 machines installed worldwide, our case erecting and forming portfolio for RSC cases has no equivalent for:

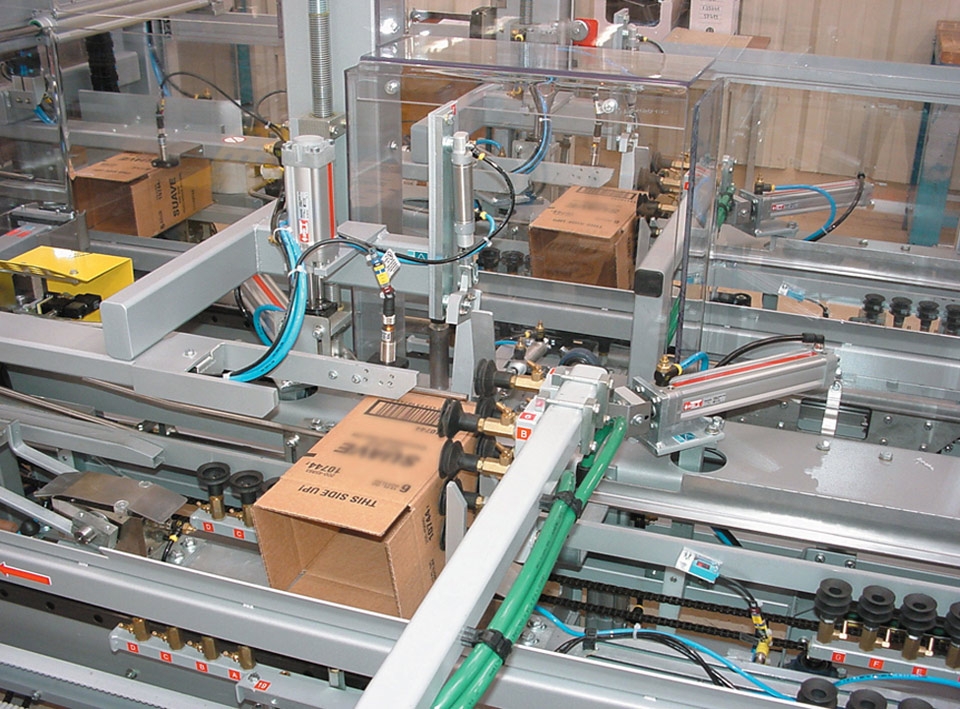

* Positive case extraction thanks to double extraction arm fitted with suction cups
* Precise case forming
* Positive case transfer thanks to retractable guides
* Inner flap folding guaranteed whatever the cardboard quality.
* Accurate hot-melt gluing and case squaring
* Bottom flaps pressed and squared-up to prevent case defects such as tapered gaps between flaps.

Performance:
* Machine access optimised in order to facilitate maintenance: centralised wiring system, even quicker changeovers, direct access to air and power supply valves.
* Improved ergonomics: completely transparent guards for perfect visibility, operator control panel.
* Centralised adjustment points to ensure quick format changeovers
* Low case magazine to facilitate loading
* Several case sizes can be handled on the same machine
* Various options depending on requirements: interface, gluing method, automatic size changeovers, etc.
* Speed: up to 70 cases per minute depending on the format

Features

Case forming carried out with precision
Inner flap folding is guaranteed.
Accurate hot-melt gluing and case squaring.

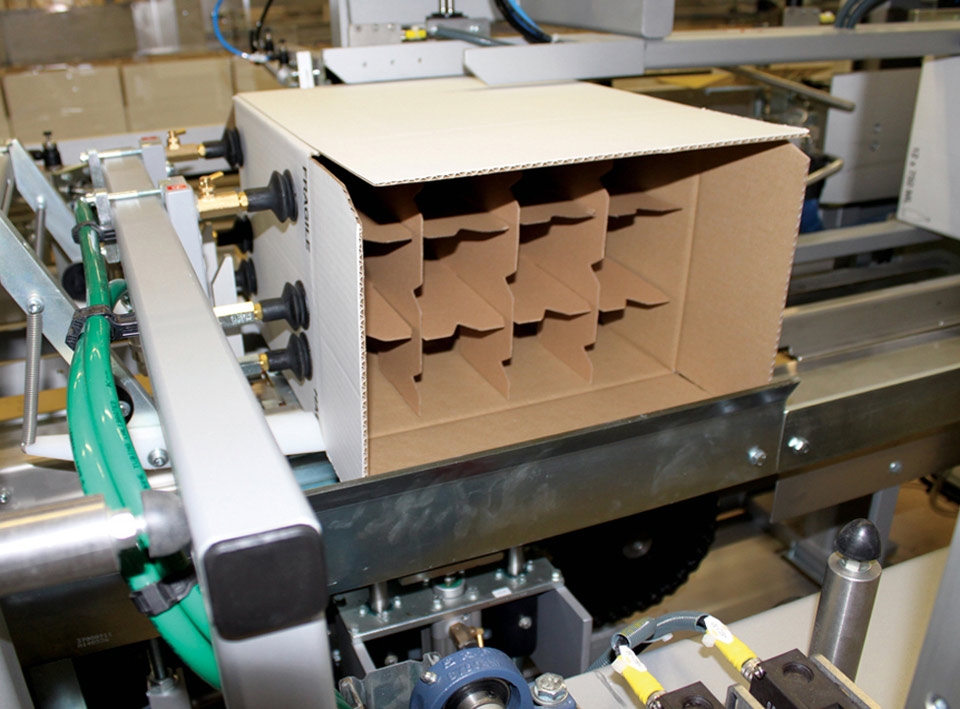

American cases (RSC), half cases, cases with special flaps and pre-joined display cases can all be handled.
Centralized adjustment points to ensure quick format changeovers
Low case magazine to facilitate loading

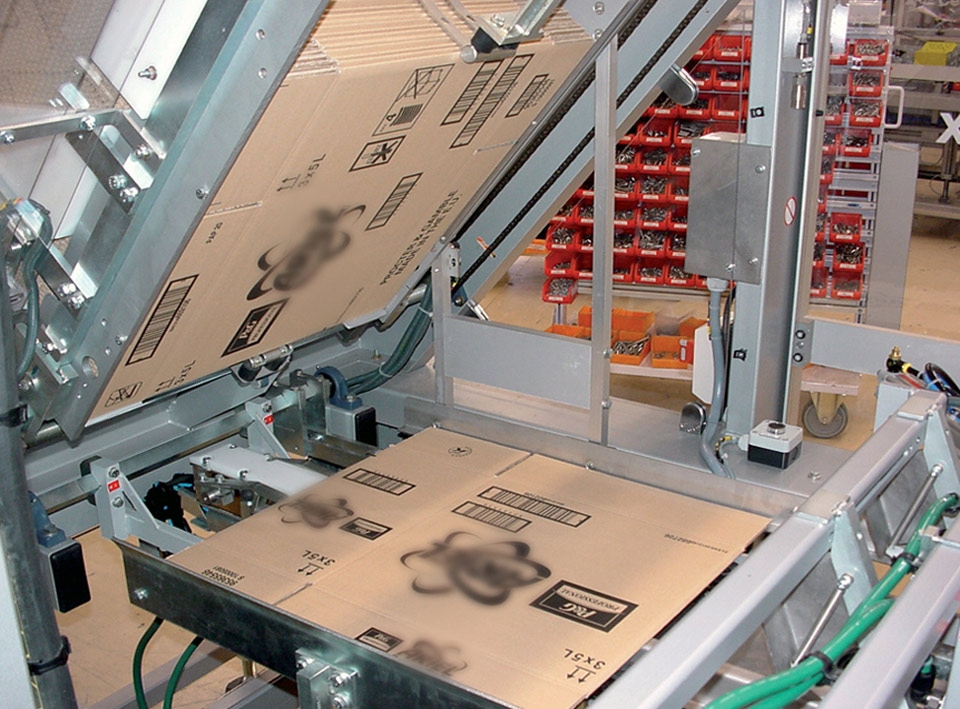

Positive extraction of case blanks from a sloping magazine or a flat belt magazine, 2500mm long.

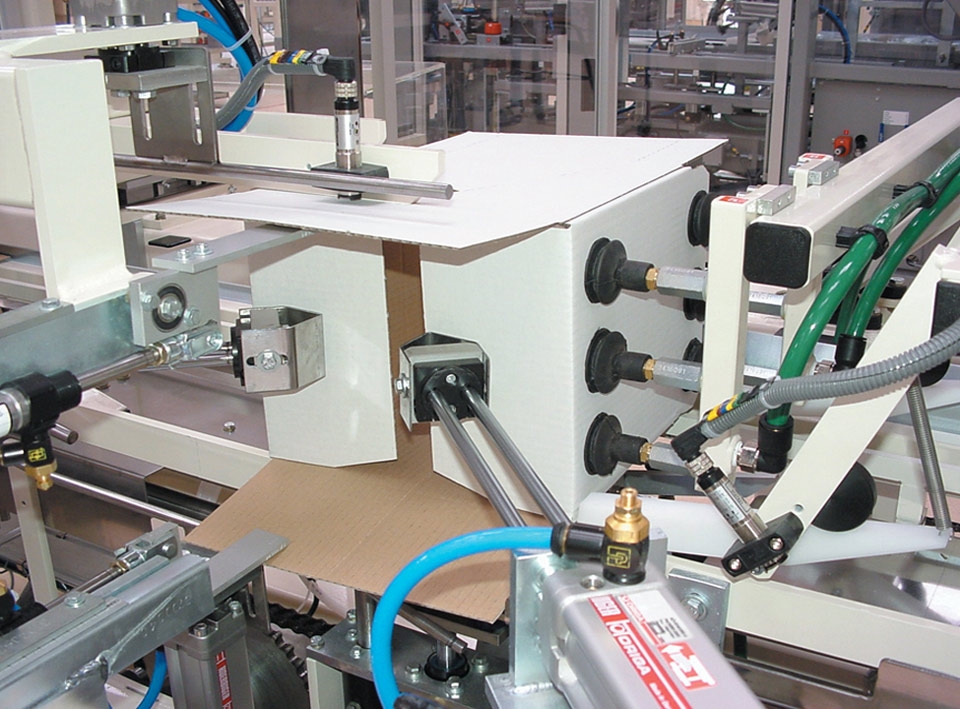

Erection and squaring of the static case by rotating arm and lower support ramp.
Deflection of the long flaps prior to folding of inner flaps.

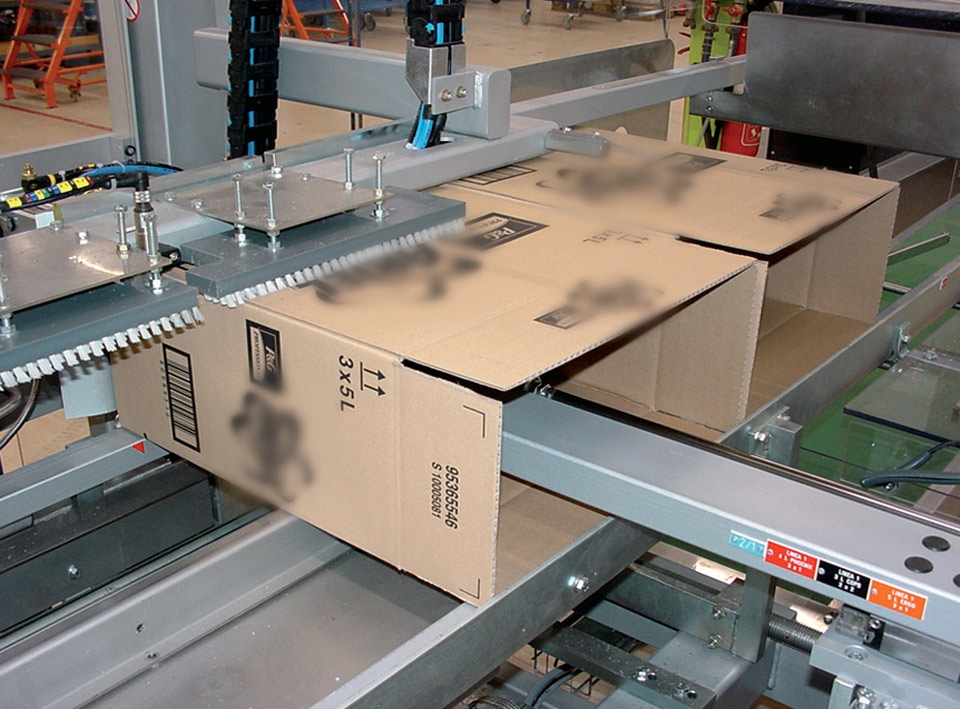

Sequential or motorized transfer of blanks (held square) by mechanical shuttle with speed control for the even application of glue strips.

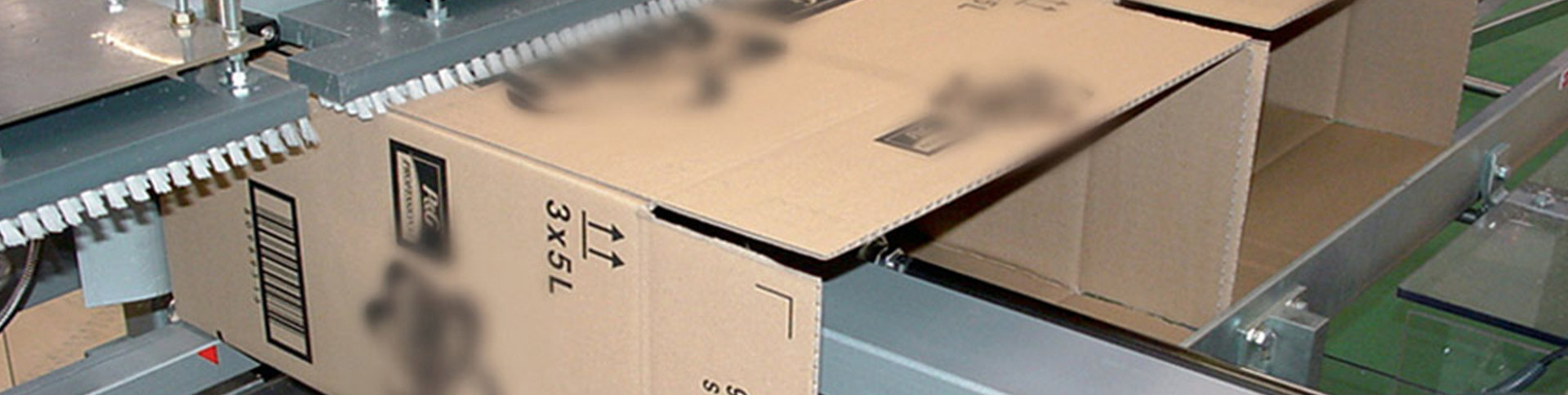

Pre-folding of the long flaps whilst case is stationary, followed by progressive folding during transfer.

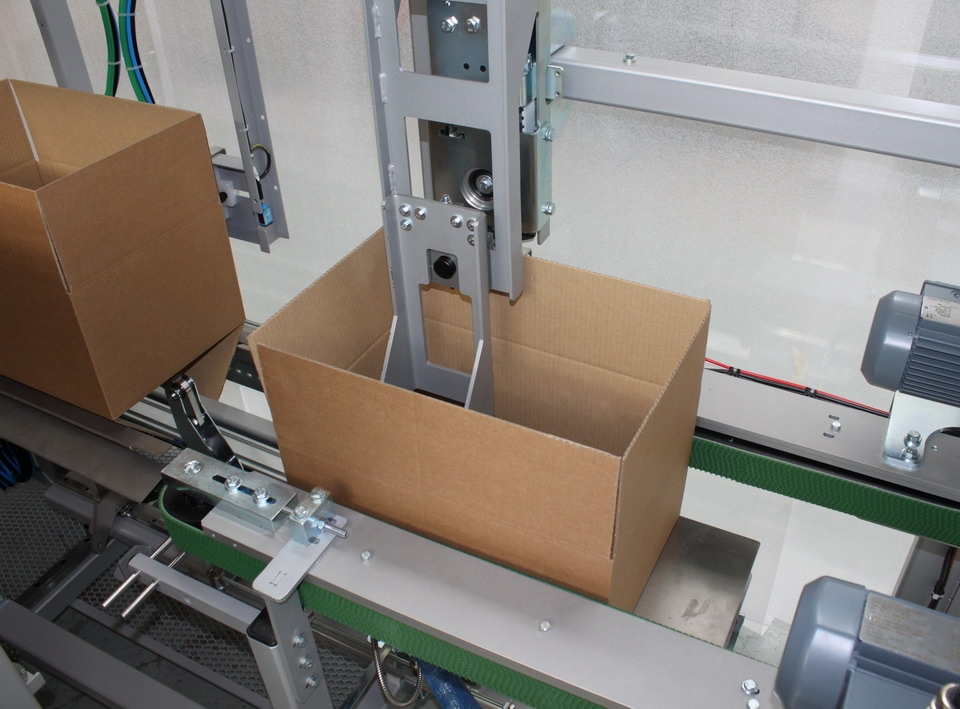

Application of even pressure to the static case, squaring the case prior to outfeed.

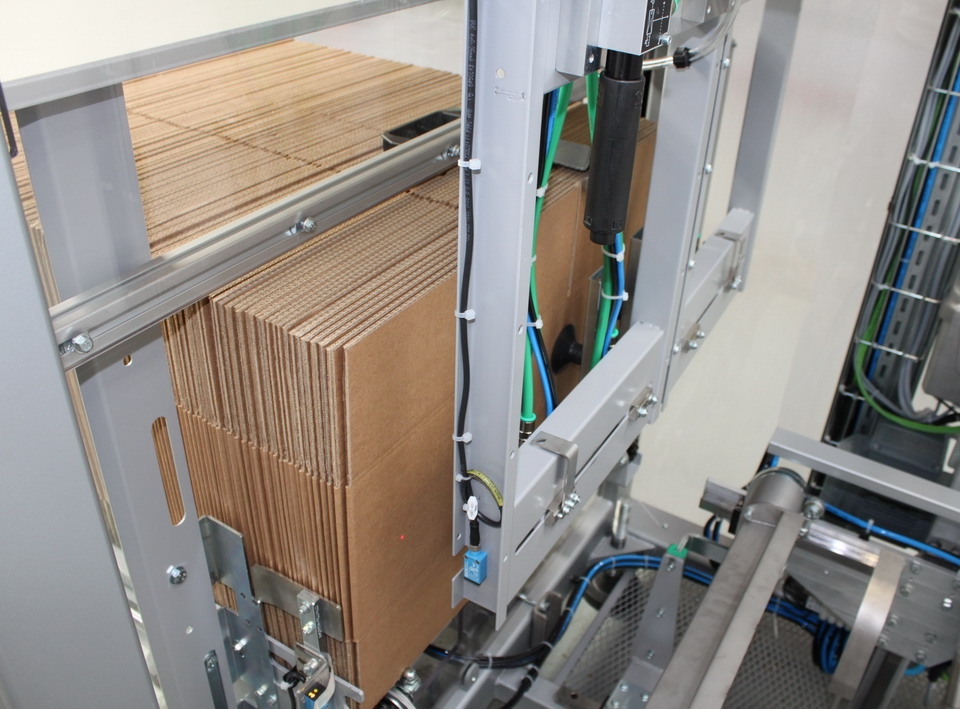

Cardboard case magazine on two separate conveyors equipped with chains and driven in controlled and independent manner for smooth advance and accurate positioning of the blank at the extraction station

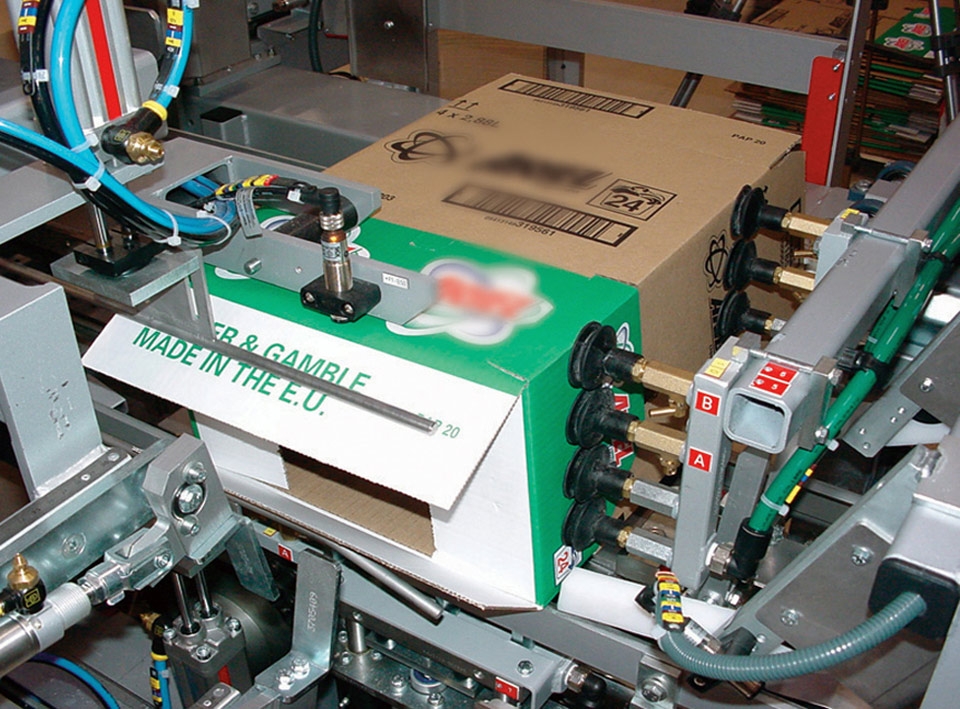

Case extracted and folded positively in two stages, by means of two mechanical arms with eight suction cups, for higher efficiency

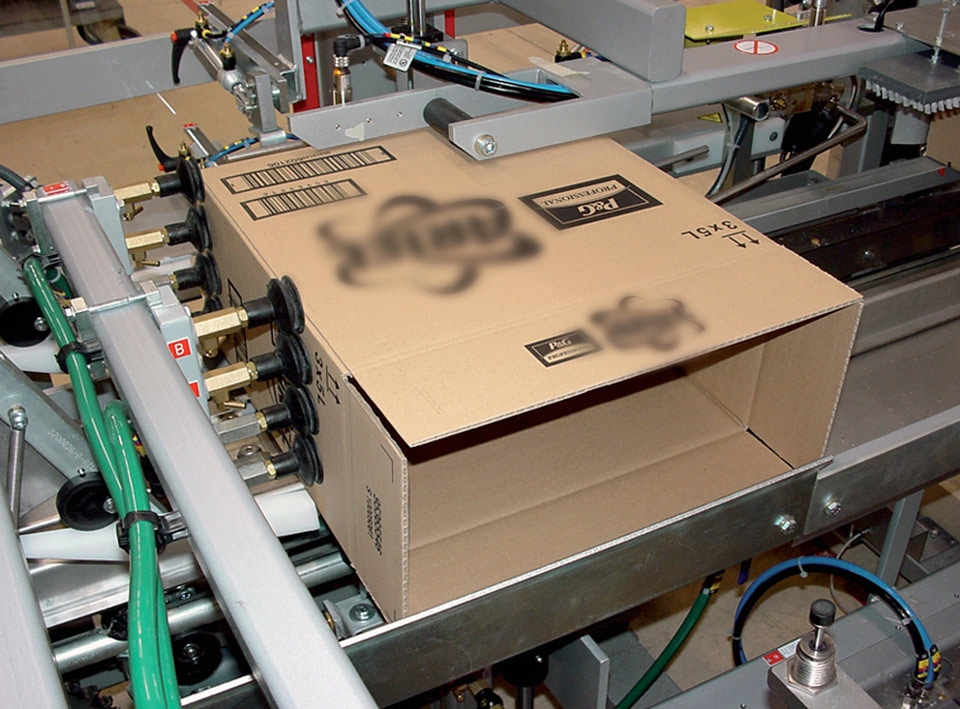

Bottom flaps folded positively and longitudinal flaps pre-folded at a standstill for perfectly squared-up cases
Machine with in-line or 90° configuration
Regular and uniform application of hot-melt glue strips or adhesive tape thanks to motor-driven side belts with controlled speed
Three types of closure for the bottom flaps: hot-melt gluing, adhesive tape or double closure by combining both
Excellent machine autonomy with a magazine capacity with a working loading length of 1,400 mm
High-quality components and superior finishing level for high demanding industrial environmentsH
Machine able to handle a wide range of packaging
6” or 7” touch-screen HMI display panel
2-minute format changeover thanks to quick-release systems (push-pull, without requiring a crank handle)
Reduction and centralization of adjustment points, all accessible on a single side

F38 39 design specifications
F312 design specifications

F38 39 design specifications
F312 design specifications

F38 39 design specifications

Case forming carried out with precision
Inner flap folding is guaranteed.
Accurate hot-melt gluing and case squaring.
American cases (RSC), half cases, cases with special flaps and pre-joined display cases can all be handled.
Centralized adjustment points to ensure quick format changeovers
Low case magazine to facilitate loading
Positive extraction of case blanks from a sloping magazine or a flat belt magazine, 2500mm long.
Erection and squaring of the static case by rotating arm and lower support ramp.
Deflection of the long flaps prior to folding of inner flaps.
Sequential or motorized transfer of blanks (held square) by mechanical shuttle with speed control for the even application of glue strips.
Pre-folding of the long flaps whilst case is stationary, followed by progressive folding during transfer.
Application of even pressure to the static case, squaring the case prior to outfeed.

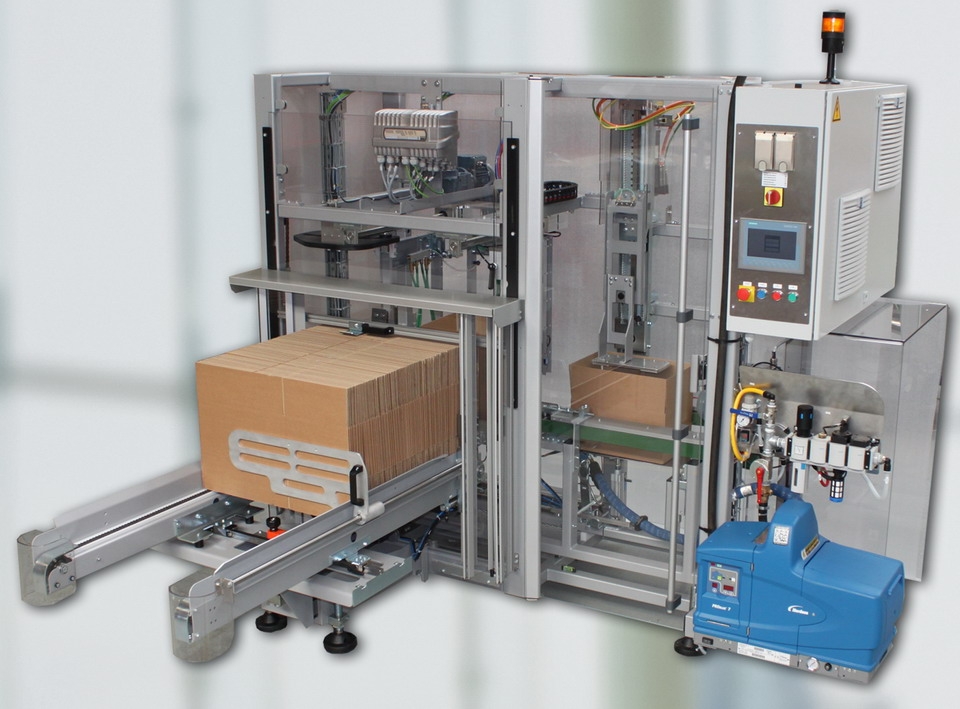

F312 design specifications

Cardboard case magazine on two separate conveyors equipped with chains and driven in controlled and independent manner for smooth advance and accurate positioning of the blank at the extraction station
Case extracted and folded positively in two stages, by means of two mechanical arms with eight suction cups, for higher efficiency
Bottom flaps folded positively and longitudinal flaps pre-folded at a standstill for perfectly squared-up cases
Machine with in-line or 90° configuration
Regular and uniform application of hot-melt glue strips or adhesive tape thanks to motor-driven side belts with controlled speed
Three types of closure for the bottom flaps: hot-melt gluing, adhesive tape or double closure by combining both
Excellent machine autonomy with a magazine capacity with a working loading length of 1,400 mm
High-quality components and superior finishing level for high demanding industrial environmentsH
Machine able to handle a wide range of packaging
6” or 7” touch-screen HMI display panel
2-minute format changeover thanks to quick-release systems (push-pull, without requiring a crank handle)
Reduction and centralization of adjustment points, all accessible on a single side
